Paint Booth Curtains for Spray Booths & Finishing Stations
Enclose Spray Booth Areas & Protect Workers from Overspray
Paint booth curtains from Steel Guard Safety provide a cost-effective solution for enclosing spray booths and protecting workers, equipment, and surrounding areas from paint overspray and airborne contaminants.
These spray booth curtains help transform auto body shops into more efficient, controlled environments without the cost of permanent booth construction.
As part of our automotive curtain systems, these solutions are ideal for paint prep and finishing applications.
Control Overspray & Improve Finishing Environments
Overspray and airborne particles can impact nearby work areas and equipment. Paint booth curtain systems help contain these contaminants and maintain cleaner, more controlled finishing environments.
Proper containment and ventilation are essential in spray finishing operations, as outlined by the Occupational Safety and Health Administration (OSHA).
- Contain paint overspray and airborne particles
- Protect workers and surrounding equipment
- Improve finish quality and consistency
- Create controlled spray environments
NFPA-Compliant Curtain Systems for Paint Booths
These spray paint booth curtains meet NFPA-33 guidelines for finishing stations when installed with proper systems.
This makes them a practical solution for facilities that require compliant spray booth enclosures.
Cost-Effective Alternative to Hard Wall Booths
Compared to permanent paint booth construction, paint booth curtains offer a flexible and affordable enclosure solution.
- Lower cost than hard wall paint booths
- Faster installation with minimal disruption
- Flexible configurations for changing shop layouts
- Compatible with plenum and ventilation systems
Stock Paint Booth Curtain Systems
- Color: White Top – Clear Middle – Blue Bottom
- Materials: Top & Bottom – 18 oz Coated Vinyl | Middle – 20 Mil Clear PVC (All materials meet NFPA-701 flame retardant standards)
- Kit Includes: Paint booth curtain with vision panel, top grommets, bottom chain weight, Velcro side seals, galvanized steel track, roller hooks, connectors, and end stops
- Panels: Modular design allows multiple panels to connect
Ships in 2–3 Business Days
Additional Information:
Iron Clad Warranty
6 Year Warranty on Construction and the Peace of Mind of Covering Any Related OSHA Fines. Learn More
Rush Manufacturing
Get your Custom Paint Booth Curtain Wall Made in as little as 5 Days (Depends on Order Size)
Low Price Guarantee
We’ll Guarantee the Lowest Price, and if you find a better on we will beat it by 5%
Custom Paint Booth Curtain Solutions
In addition to stock systems, we offer fully custom paint booth curtain systems designed for your facility layout and finishing requirements.
- Custom sizes and configurations
- Track-mounted or stationary systems
- Clear or opaque material options
- Designed for automotive finishing environments
Get a Custom Paint Booth Curtain System
Our team will help design a spray booth curtain solution tailored to your operation.
Request a Quote Online
Call 1-800-347-8368 to Speak with a Specialist
Paint Booth Curtain
Standard & Optional Features
2-Wheel Nylon Roller Hooks
Make for easy sliding and folding of the paint booth curtain. 2-wheel steel roller hooks are available for large paint booth curtains systems.
#2 Toothed Brass Grommets
#2 Brass Toothed Grommets are spaced every 12″ on center of the curtains to hang securely on the roller hooks.
Galvanized Steel Roller Track
Heavy-Duty 16 gage roller track system which modularly connects track lengths to your desired shape and length. (Dim – O.D. – H-1.25″ x W-1.44″)
Track Mounting Hardware
5 Different Mounting Options Available Including Universal Mount to use in place for Beam to Chain, Threaded Rod, and Wall Mount. (See Mounting & Hardware)
Velcro Attachments
2″ Velcro side attachments easily seal and attach both sides of curtains to multiple curtains. Available in standard 2 x 1′ swatches, full length, or custom.
Chain Weighted Hem
Heavy-Duty 3/16 in Thick Galvanized Chain inserted into the bottom pocket to stabilize the curtain against drafts.
Work-View Clear Window
20 Mil PVC Window – Flame resistant & double polished for a clear view of workers and operations. Meets CFM, & NFPA-701 standards. (Optional)
Heat Welded Interior Seams
Interior Seams are electronically welded with RF Bar Sealers for an extra tough resistance to tears. Outer Hems are sewn with a heavy-duty double-lock stitched nylon thread.
Floor Sweeps (Add-On)
Vinyl Floor Sweep – Sewn on or Velcro Option – Seals bottom 1″ gap to seal off dust, dirt, & contaminants.
Part# CA 300 – Sewn On Part# CA 299 – Velcro
Floor Mount D Ring Attachments (Add-On)
Floor Mount D-Rings – Included with strap and buckle. Fastens the curtain system to floor against wind & updrafts
Part# CA 101
Adhesive Velcro (Add-On)
2 inch Adhesive Velcro – Attaches any curtain to a brick, metal, concrete, or wood wall or door opening.
Part# CA 677 – 2″ PSA Loop Part# CA 694 – 2″ PSA Hook
Valance Panels (Add-On)
Upper Stationary Curtain Panels – Custom made to Ceiling Design -Ideal when the top half of an area does not need to be opened and contaminants need to be sealed off.
Part# CA 655
Strip Curtain Walk Through (Add-On)
Equip your paint booth curtains with the flexibility to walk-through without opening your entire system. Can be equipped for Man or Forklift Traffic
Part# CA 900

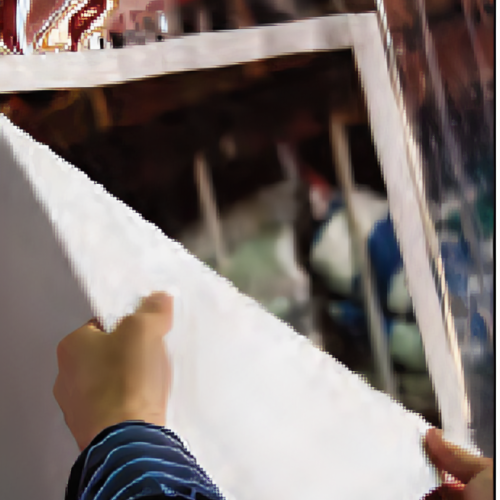

Filter Panels (Add-On)
Replaceable Filter panels to keep negative pressure & fresh air generated inside of you paint booth curtains enclosure for plenum ventilation systems.
Part# CA 850
18 oz Coated Vinyl FR - Opaque
18 oz per sq/yd Coated Vinyl provides excellent Tear and Tensile Strength while also giving Superior Abrasion Resistance Compared to Laminate Vinyls. Meets Flame Resistant Standards, CFM, NFPA-701 & ASTM E-84.Generally used on the top & bottom panels but can also be selected as a complete opaque curtain. For More Information on Tech Specs, See 18 oz FR Coated Vinyl Technical Specifications Here.
Red
Yellow
Chamipion Blue
Royal Blue
Purple
Orange
Forest Green
Gray
Tan
Black
13.5 oz Laminate Vinyl FR - Opaque
13.5 oz per sq/yd Coated Vinyl provides the most economical Vinyl Curtain Material with solid durability. The Vinyl Meets Flame Resistant Standards, CFM, NFPA-701 & ASTM E-84. Generally used on the top & bottom panels but can also be selected as a complete opaque curtain. For More Information on Tech Specs, See 13 oz FR Laminate Vinyl Technical Specifications Here.
Red
Yellow
Forest Green
Blue
White
Gray
Black

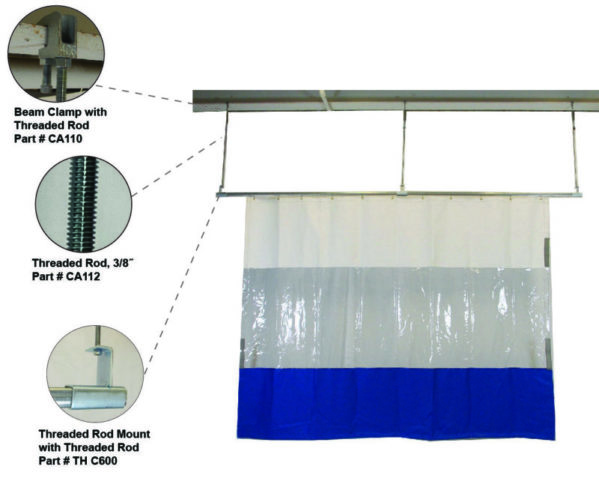

THREADED ROD MOUNT - SUSPENDED
Track System is mounted in from beams or trusses with a C-Clamp, and using a 3/8″ Threaded Rod to suspend down to the desired height. The Threaded Rod Track Mounts then slide over the threaded rod. Mount Spacing can be from 4′ -8′ with taller heavier systems over 25′ being 6′ or less usually
TH C600
TH C502
TH C503
TH C601
TH C604 Use w/ 500s
TH C900 - Sub for Threaded Rod, Beam to Chain, & Wall
BEAM TO CHAIN MOUNT - SUSPENDED
Track System is mounted in from beams or trusses with a C-Clamp, and using an S-Hook suspended down with chain to the desired height. The Track Mounts then connect the system with more S-hooks. Aircraft Cable is another option to use instead of chain. Mount Spacing can be from 4′ -8′ with taller heavier systems over 25′ being 6′ or less usually
TH C500
TH C503
TH C503
TH C501
CEILING MOUNT
Ceiling Mount Hardware is attached with lag bolts directly flush to ceiling, floor joists or to steel beams.
TH C200
TH C200
TH C203
TH C201
WALL MOUNT
For the Wall Mount installation method, track mounts are attached to walls above openings, or you can use wall end brackets to brace or stabilize the track.
TH C303
TH C302
TH C301
TH C300
FLOOR MOUNT - FREE STANDING
The Floor Mount System which is Free Standing, uses base plates at intervals anywhere from 4′ – 10′ depending on the height of the curtain system. The base plates attach to posts which connect to the floor mount splices.
TH C800
TH C802
TH C803
TH C801
6' - TH F06, 7' - TH F07
8' - TH F08, 9' - TH F09
10' - TH F10, 12' - TH F12
TH C804
STRAIGHT TRACK, ROLLER HOOKS, & ACCESSORIES
Straight Tracks, Plain Connectors, Universal Mounts, End Stops, as Well as Pulleys to Customize Your Track Curtain System.
TH R101
TH R100
TH C700
4' - TH T04
5' - TH T05
6' - TH T06
7' - TH T07
8' - TH T08
10' - TH T10
12' - TH T12
- Measure the Distance of the Width of the Curtain Laid Out
-
- Steel Guard Adds 3% + 2″ to the Width Of Curtains for Drapage (Unless Custom Spec’d)
- The Track Hardware is the Same Width as Your Order.
2. Measure the Distance from the Floor to the Mounting Point
-
- Paint Booth Curtains with Track come Standard 3″ Shorter to Account for the Track. (For Example a 10′ Height System Measures 9′-9″)
- If you have a Floor Sweep the Size is the 3″ Shorter and the Floor Sweep will Drape and Inch Below the Full Measure Height
- If you are needing to Enclose a Sloped Roof the Track Paint Booth Curtain will be the Height before the Egress. We will need to make Two Triangular Panels. We will need the “Right Side Height”, “Left Side Height, and the Width.
Yes. These can be used as Replacement Body Shop Curtains or Combine them with an Overhead Plenum System for a 1-2 or 3-sided Paint & Prep Station.
All the Track Parts Connect Modularly
- Layout the Track Pieces & Connectors Along the Floor Right Below Where you Plan to Mount Them.
- Affix One of the End Stops Along the End of the Track (Unless Track is In-between Walls)
- Connect the Track on the Back Side By Sliding the In-Line Connectors Over the Track and Match Up the Holes, Use an All Wrench with Set Screws to Affix
- . Take First Piece of Track and Second Piece of Track and Slide the Left Side of the Next In-Line Connector and One Peice and Right Side of the In-Line Connector.
- Continue this in Perpetuity Untill the Track System is to End.
For More Detailed Information Take a look at our Track Installation Instructions
Typically Track Spacing is Anywhere from 5′-8′ Apart.
Unless the System is very heavy and tall Spacing below 5′ will not be necessary. Most systems up to 8′ will have a “droop of less than 1/8”. This is called the Deflection. Contact one of our Reps if you are Needing Help Determining the Deflection.
Yes. This is a Flush Mount and is Generally Done with Tek Screws, but Other Screws are Acceptable. Space Holes Every 3-5″.
Yes. These are Typically Done by Spot Welding, But Only with Ceiling or Wall Mounts. Plain Straight Track with No Mounts is NOT recommended to be Welded.
Most Systems are Rather Easy and About a 3 out of 10 in Difficulty. There are Exceptions but for Most Systems it is very Easy to Install them with Your Maintenance Staff.
