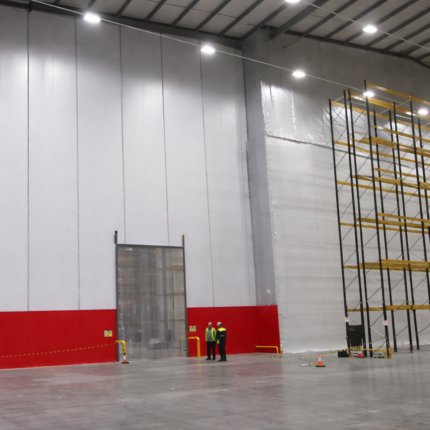

Insulated Curtain Wall Systems for Warehouses and Industrial Facilities
Insulated curtain wall systems provide an effective solution for temperature control, energy efficiency, and space separation inside warehouses, manufacturing plants, and industrial facilities. These systems are designed to create thermal barriers that help maintain consistent temperatures between work zones.
Steel Guard Safety insulated curtain walls are engineered for facilities that require climate separation, including cold storage environments, refrigerated areas, and temperature-controlled production zones. These systems offer a flexible alternative to permanent insulated wall construction.
Insulated curtain systems are commonly used in distribution centers, food processing facilities, cold storage warehouses, and industrial environments where temperature control is critical.
Insulated curtain wall systems are often used as part of broader facility safety and efficiency strategies aligned with
workplace safety guidelines.
What Are Insulated Curtain Walls?
Insulated curtain walls are multi-layer fabric systems designed to provide thermal separation between different areas of a facility. These systems help reduce energy loss while maintaining controlled environments for storage, processing, or manufacturing operations.
Unlike rigid insulated walls, curtain systems provide flexibility, allowing facilities to adjust layouts as operational needs change.
Key Features of Insulated Curtain Systems
- Multi-layer insulated curtain construction
- Thermal barrier for temperature separation
- Custom sizing for warehouse and facility layouts
- Flexible installation and modular design
- Durable industrial-grade materials
- Options for track-mounted or fixed systems
Additional Information:
Applications for Insulated Curtain Walls
- Cold storage and refrigerated warehouses
- Food processing facilities
- Temperature-controlled production areas
- Energy efficiency improvements in large buildings
- Separation of heated and unheated zones
Insulated Curtain Walls vs Traditional Insulated Walls
| Feature | Insulated Curtain Walls | Traditional Insulated Walls |
|---|---|---|
| Installation Time | Fast installation | Extended construction time |
| Flexibility | Movable and adjustable | Permanent structure |
| Energy Efficiency | Thermal separation with flexible layout | Fixed thermal insulation |
| Cost | Lower cost solution | Higher construction cost |
Warehouse and Industrial Curtain Solutions
Insulated curtain materials are commonly manufactured with flame-retardant properties that may meet standards such as
NFPA 701 flame resistance testing.
Steel Guard Safety offers a complete range of
warehouse curtain systems
and
industrial curtain systems
designed for flexible space separation and environmental control.
Energy Shield Insulated Curtains
Energy Shield Insulated Material
Energy Shield Materials – 2 layers of 18 oz coated vinyl sandwiched around 1, 2, or 4 Layers of 3M Thinsulate or Formaldehyde Free Fiberglass Insulation Ranging from 3″-6″ Thick with Foil Lamination. Meets Strict Building Codes including ASTM E 136 and NAIMA 202-96. R Values Range from R-3, R-6, for Thinsulate R-10, and R-15 for High R-Value Fiberglass. Custom configurations can reach up to R-30. All Materials meet NFPA-701 and ATM E-84 guidelines for Flame Retardancy in Buildings. See Materials Tab for More Details.
#2 Brass Grommets
#2 Brass Toothed Grommets are spaced every 12″ on center. The curtains can be affixed directly to rafters, or use a Universal L-Channel to affix Panels.
Velcro Side Attachments
2 inch Velcro side attachments are on both sides of the curtain panel to easily seal and attach both sides to multiple curtains to create an infinite length wall.
Floor Sweeps (Add-On)
Velcro attaches to the full length of one run of curtains – Seals bottom of insulated curtain to the floor.

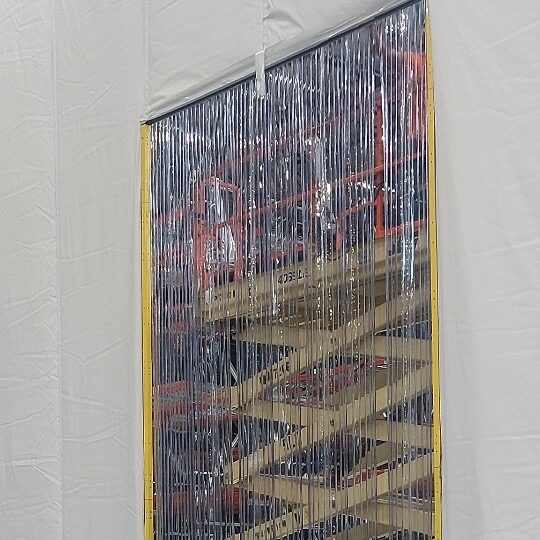

Strip Door Walk/Drive Through (Add-On)
A Vinyl Strip Door can be added for access of Workers or Forklift Traffic between rooms.
Floor Mounts (Add-On)
Floor Mount D-Rings – Included with strap and buckle. Fastens the curtain system to floor.
Part# CA 101
Angle Iron
Energy Shield - Thinsulate
18 oz coated Vinyl( 2-Layers) sandwiched around 3M Thinsulate insulation. Engineered to provide high R-Values with minimal thickness. Has the ability to be used on our roller track system and can fold up to 1/3 of its length. Multiple Layers of Insulation provide R-Value insulation ranging from R-3 and R-6 Variations. Custom multiple layered units available
For detailed thermal performance data and material specifications, download our
insulated curtain system thinsulate technical data sheet.
Energy Shield - High R-Value
18 oz coated Vinyl (2-Layers) sandwiched around Formaldehyde Free Fiberglass Insulation Ranging from 3″-6″ Thick with Foil Lamination. Meets Strict Building Codes including ASTM E 136 and NAIMA 202-96. R Values of R-10 and R-15, with Custom up to R-30
For detailed thermal performance data and material specifications, download our
insulated curtain system high R-Value technical data sheet.
Insulated curtain systems are typically installed using track-mounted or fixed systems that allow for quick installation with minimal disruption to operations.
Insulated curtain walls are multi-layer fabric systems designed to create thermal separation between different areas of a warehouse or industrial facility. They help maintain temperature control while allowing flexible space division.
Insulated curtain walls are commonly used in cold storage warehouses, food processing facilities, manufacturing plants, and distribution centers where temperature control is required.
Yes. Insulated curtain systems help reduce energy loss by maintaining temperature zones, which can improve overall facility energy efficiency.
Yes. These systems can be custom-designed to fit specific facility dimensions, layouts, and temperature control requirements.
Insulated curtain walls provide a flexible and cost-effective alternative to permanent insulated walls, especially in facilities where layouts may change over time.
Industries such as food storage, logistics, manufacturing, cold chain distribution, and industrial processing commonly use insulated curtain wall systems.
Explore our full range of warehouse curtain systems designed for flexible facility separation.
Catalog Page - Energy Shield Insulated Curtains (1)
Catalog Page - Energy Shield Insulated Curtains (2)
