Industrial Soundproof Curtains | Noise Control Curtains
Industrial Soundproof Curtains
Industrial Sound Curtains are made from Sound Absorbing and Sound Dampening Materials to keep noise at OSHA safe levels. These Quilted Industrial Soundproof Curtains offer sound reduction to a Transmission Class up to STC 33. Sound Shield Noise Control Curtains are ideal for making Acoustic Enclosures or divide rooms to absorb and block sound. All Sound Shield Industrial Soundproof Curtains contain an exterior quilted fiberglass layer, and interior layers with mass loaded vinyl (MLV) to reduce excessive noise. The Noise Control Curtains can also be equipped with our Track and Roller Systems to allow easy access for people and equipment.
Excellent for use in soundproofing warehouses, industrial machinery, auditoriums, and more. Besides making the workplace speech intelligible, the Industrial Noise Control Curtains can prevent noise induced hearing loss.
Industrial Sound Curtain Common Applications
- In-plant noise control curtain dividers
- Soundproof curtains & enclosures
- Acoustical curtain dividers
- Heavy Machine enclosures
- Compressor & blower housing
- Flexible doorways
- Drive-thru doors
- Stamping press enclosures
- Noise reverberation control
- Temporary construction noise barriers
- Soundproofing wall panels & partitions
- Fan enclosures
- Grinder / compactor noise control
- Flexible Room Dividers
SEE MATERIAL OPTIONS IN TAB BELOW
Additional Information:
Other Sound Curtain Products
Folding Sound Curtains
Sound Blankets
Acoustic Screens
Acoustic Enclosures
Outdoor Sound Curtains
Construction Sound Curtains
Sound Shield Curtains
Standard & Optional Features
SCC Materials
Vinyl Quilted Fiberglass Materials combined with Mass Loaded Vinyl. Several Options. See Details in Materials Tab or Spec Sheets below.
SCC-10 Page
SCC-11 Page
SCC-12 Page
SCC-13 Page
#4 Brass Grommets
#4 Heavy-Duty Brass Toothed Grommets are spaced every 12″ on center of the curtains to hang securely on the roller hooks.
Nylon & Steel Roller Hooks
Used to Hang the Curtains in a Stationary Cell or by Using Dual Track Hardware to Slide them Behind Each Other. Larger Systems over 10′ Tall Usually need Steel Roller Hooks.
Part# TH R102 – Steel Roller Hooks
Dual or Single Track Mounting Hardware
Single Track or Dual Track for Sliding Curtains Behind Each Other. 5 Different Mounting Options Available. Including a Universal Mount to use in place for Beam to Chain, Threaded Rod, and Wall Mount. (See Mounting & Hardware Tab)
Galvanized Steel Roller Track
Heavy-Duty 16 gage roller track system which modularly connects track lengths to your desired length and shape. (Dim – O.D. – H-1.25″ x W-1.44″) Use in Single or Dual Runs.
Velcro Attachments
2 in. Velcro side attachments easily seal and attach both sides of curtains to multiple curtains. Standard is in full Lengths of the Curtains.

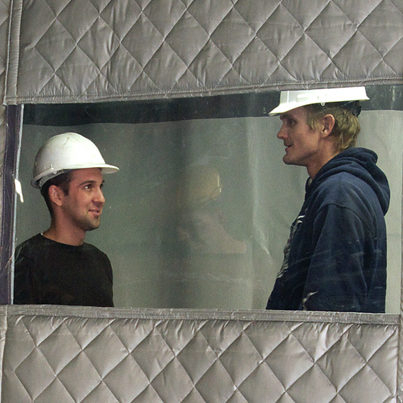

Work-View Window (Add-On)
Made from 40 MIl FR PVC, the Clear Window measures 2′ x 4′ and allow viewing of other rooms or work areas.
Part# SCC WINDOW
SCC-10 and SCC-11
STC 29
STC 33
SOUND ABSORPTION (HZ) PER ASTM C423
| Model Number | 125 | 250 | 500 | 1000 | 2000 | 4000 | NRC |
|---|---|---|---|---|---|---|---|
| SCC-10 & SCC-11 | .18 | .62 | .89 | .84 | .60 | .45 | .75 |
SOUND TRANSMISSION LOSS (HZ) PER ASTM E90 & E413
| Model Number | Barrier | 125 | 250 | 500 | 1000 | 2000 | 4000 | STC |
|---|---|---|---|---|---|---|---|---|
| SCC-10 | 1 lb. | 12 | 16 | 27 | 40 | 44 | 43 | 29 |
| SSC-11 | 2 lb. | 19 | 22 | 28 | 40 | 56 | 61 | 33 |
SCC-12 and SCC-13
STC 27
STC 32
SOUND ABSORPTION (HZ) PER ASTM C423
| Model Number | Thickness | 125 | 250 | 500 | 1000 | 2000 | 4000 | NRC |
|---|---|---|---|---|---|---|---|---|
| SCC-12 | 1″ | 0.12 | 0.47 | 0.85 | 0.84 | 0.64 | 0.62 | 0.70 |
| SCC-13 | 2″ | 0.07 | 0.27 | 0.96 | 1.13 | 1.08 | .99 | .85 |
SOUND BLOCKING PERFORMANCE (HZ)
| Model Number | Thickness | 125 | 250 | 500 | 1000 | 2000 | 4000 | STC |
|---|---|---|---|---|---|---|---|---|
| SCC-12 | 1″ | 11 | 16 | 24 | 30 | 35 | 35 | 27 |
| SSC-13 | 2″ | 13 | 20 | 29 | 40 | 50 | 55 | 32 |
THREADED ROD - SUSPENDED
Track System is mounted in from beams or trusses with a C-Clamp, and using a 3/8″ Threaded Rod to suspend down to the desired height. The Threaded Rod Track Mounts then slide over the threaded rod. Mount Spacing can be from 4′ -8′ with taller heavier systems over 25′ being 6′ or less usually
BEAM TO CHAIN - SUSPENDED
Track System is mounted in from beams or trusses with a C-Clamp, and using an S-Hook suspended down with chain to the desired height. The Track Mounts then connect the system with more S-hooks. Aircraft Cable is another option to use instead of chain. Mount Spacing can be from 4′ -6′ with taller heavier systems over 25′ being 6′ or less usually
CEILING MOUNT
Ceiling Mount Hardware is attached with lag bolts directly flush to ceiling, floor joists or to steel beams.
WALL MOUNT
For the Wall Mount installation method, track mounts are attached to walls above openings, or you can use wall end brackets to brace or stabilize the track.
FLOOR MOUNT - FREE STANDING
The Floor Mount System which is Free Standing, uses base plates at intervals anywhere from 4′ – 10′ depending on the height of the curtain system. The base plates attach to posts which connect to the floor mount splices.
A industrial soundproof curtain is a sound absorbing and blocking device mounted on ceilings, walls or open spaces covering areas in industrial, commercial, residential or construction sites for noise control. Sound Curtains may be referred to by other names, including soundproofing blankets, noise blankets, industrial sound curtains, or acoustic curtains, or industrial soundproof curtains.
Soundproof curtains are used as partition walls or enclosures in manufacturing spaces with machinery, to create cells or just absorb sound and lower the noise levels.
They can also be used in homes or other settings to block sound through doors and windows. Not all sound blankets are used for blocking sound and preventing noise from transferring outside of a space. Some primarily absorb sound to reduce noise and echo. The Amount of Noise Blocked Depends on the Variety of Substrates Used.
Industrial Soundproof Curtains are made of a 1 inch or 2 inch Fiberglass Batting quilted with a Vinyl Coated Fiberglass Cloth Plus the Addition of Mass Loaded Vinyl.
The Purpose of the Industrial Soundproof curtains is is to Absorb Sound Waves.
If you are looking to Block more Sound Waves a Sound Attenuation Curtain is needed, which adds Mass Loaded Vinyl (MLV) in addition to the Quilted Fiberglass Substrate.
The very best way is to do Audiometric Sound Testing to find out the Loudness in Decibals (Db) for the Frequency in Hertz (Hz) of the Sound Spectrum. Along with our Sound Transmission Class (STC) Ratings this will determine what Sound Blanket or Sound Curtain works best.
If you can not do a sound test with a meter, It is useful to go by the chart below to determine what Hertz (hz) are making the most decibels. For Louder Decibels below 500 hz, Mass Loaded Vinyl is usually needed.
There are several ways to mount your industrial soundproof curtains:
- Grommets – Use a Bolts and Washers to Mount the Soundproof Curtains to the Wall Fence Desired.
- Velcro – Multiple Acoustic Blankets can be Modularly attached together. In addition, Adhesive Velcro can be attached on the Wall, or Fence, and then then the Other Velcro can be Adhered to the Industrial Sound Curtains, negating the need for screws or bolts.
- Frame – Our Weld-Shield Frame Mounts to Sound Curtains and Blankets by Looping Industrial Zip Ties Through the Grommets.
- Track System – For Large Systems, Usually with MLV the Sound Blankets hang from Nylon or Steel Roller, with 6 different Mounting Options.
Catalog Page - Sound Shield Curtains
