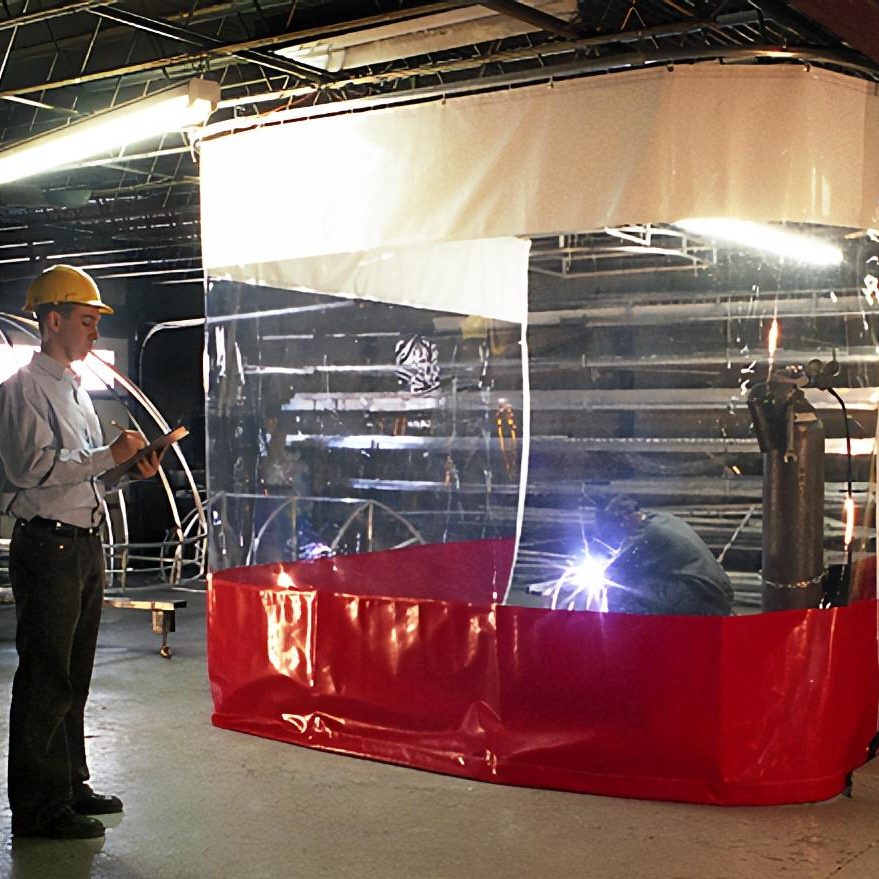

  • Industrial Curtain Walls Steel Guard Main Image ID4044
  • Industrial Curtain Walls Steel Guard Main Image ID4035

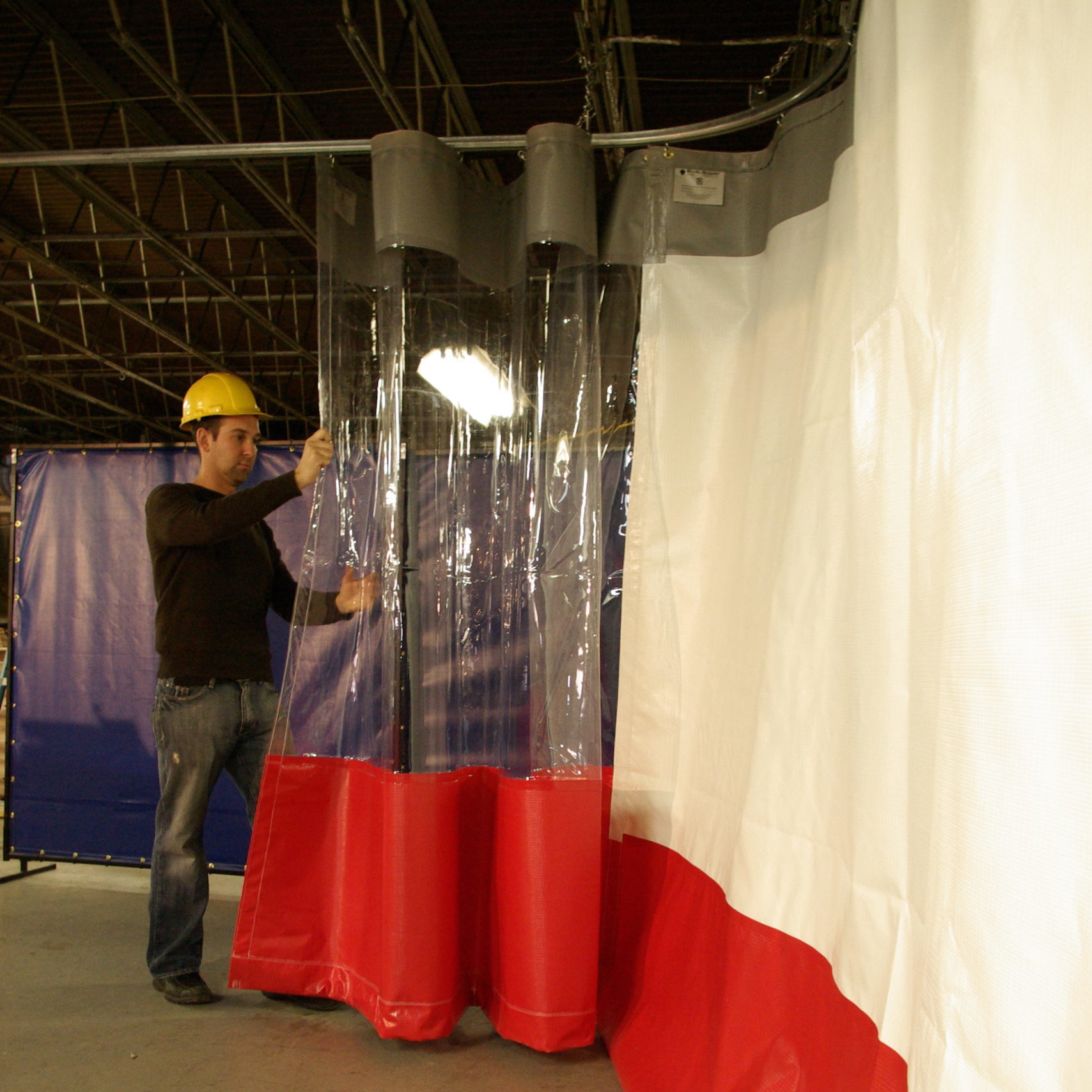

  • Industrial Curtain Walls Steel Guard Main Image ID4045
  • Industrial Curtain Walls Steel Guard Main Image ID4046
  • Industrial Curtain Walls Steel Guard Main Image ID4051
  • Industrial Curtain Walls Steel Guard Main Image ID4047

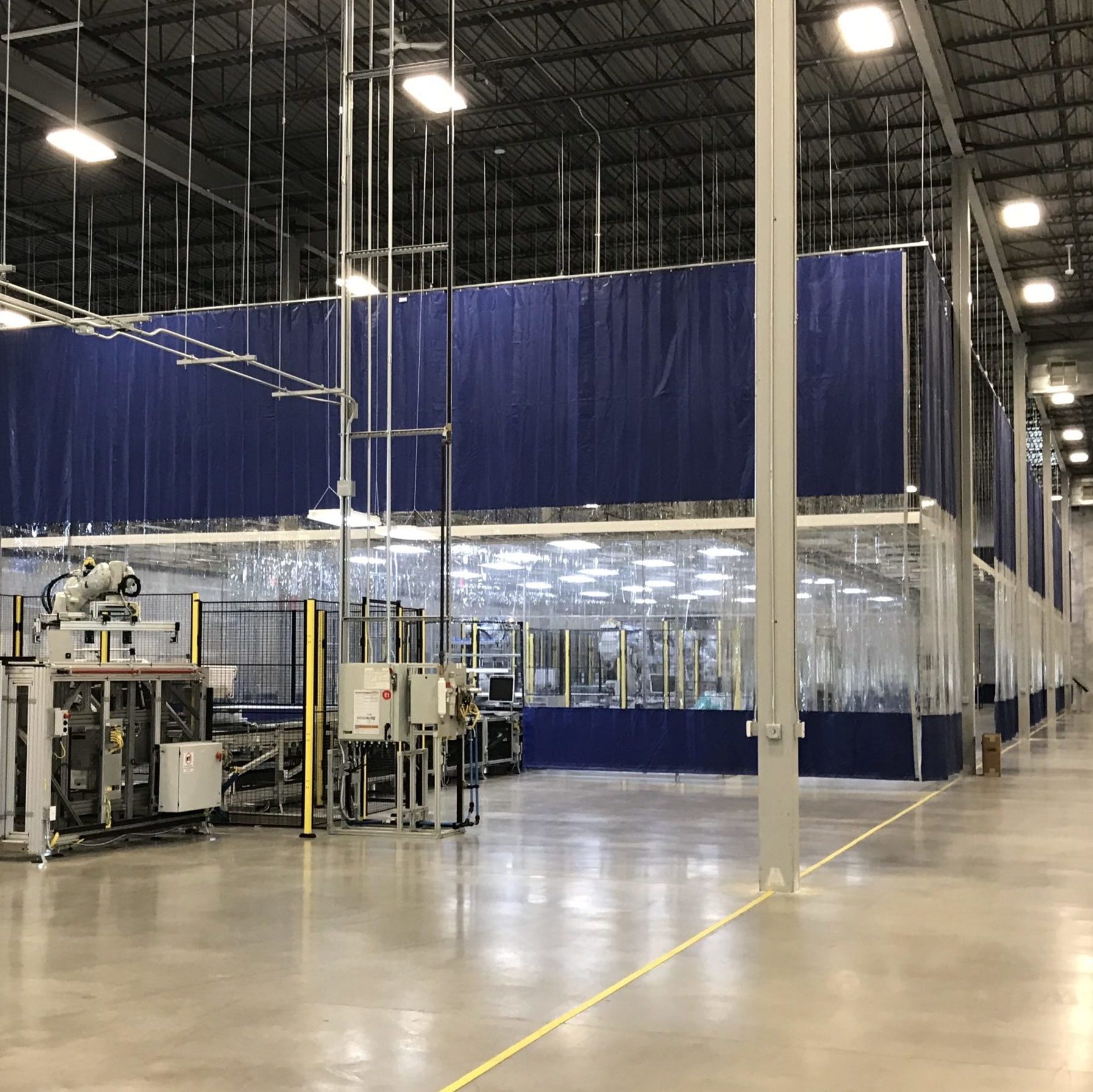

  • Industrial Curtain Walls Steel Guard Main Image ID4050
  • Industrial Curtain Walls Steel Guard Main Image ID4048
  • Industrial Curtain Walls Thumbnail Image ID4044
  • Industrial Curtain Walls Thumbnail Image ID4035
  • Industrial Curtain Walls Thumbnail Image ID4045
  • Industrial Curtain Walls Thumbnail Image ID4046
  • Industrial Curtain Walls Thumbnail Image ID4051
  • Industrial Curtain Walls Thumbnail Image ID4047
  • Industrial Curtain Walls Thumbnail Image ID4050
  • Industrial Curtain Walls Thumbnail Image ID4048

Industrial Curtain Walls for Space Divisions and Safety

Industrial Curtain Walls allow you to easily create partitioned areas in manufacturing plants, warehouses, and commercial spaces. Easily Retractable to create a closed sealed work area, or fully open up to utilize a larger, open space. Whether you’re looking to improve work efficiency, enhance privacy, or create temperature controlled zones, Industrial Curtain Walls are the versatile, economical choice. Common isolation areas include processes such as grinding, dust control, humidity containment, or even water & chemical containment.

Generally these Industrial Curtain Walls cost as little as 10% to 30% of permanent wall projects. The heavy duty curtain walls meet NFPA-701 certification for Flame Retardancy. Stocked Industrial Curtain Walls are available for quick shipment, as well as custom designed curtains with many options can be specified by our customer service staff.

Industrial Curtain Walls Top Benefits

  • As Little as 10% the Cost of Brick or Drywall Based Permanent Walls
  • Easy to Install with your Own Crew with a Few Tools
  • Moveable in Seconds to Open Up Floor Space or Make Closed Work Cells
  • Separates Workers from Dust, Dirt, Water, and Chemicals from Work Processes
  • Reduces Noise from Industrial & Machine Processes

Stock Industrial Curtain Walls

  • Color:  White Top – Clear Middle – Blue Bottom
  • Materials:  Top & Bottom – 18 oz Coated Vinyl PVC — Middle – 20 Mil Clear PVC – All Materials Meet NFPA-701 Flame Retardant Standards.
  • Kit Includes: Curtain Wall w/ Vision Panel, Grommets Set on Top, Chain Weight in Bottom Hem, Velcro on Sides — Galvanized Steel Track, 2-Wheel Nylon Roller Hooks, Universal Splice & Mount Connectors (Works in place of Threaded Rod, Beam to Chain & Wall Mounts), End Stops.
  • Panels: Connect Multiple Curtains Panels Modularly

Ships In: 2 -3 Business Days

Additional Information:

Iron Clad Warranty

Iron Clad Warranty

6 Year Warranty on Construction and the Peace of Mind of Covering Any Related OSHA Fines. Learn More

...

Rush Manufacturing

Get your Custom Industrial Curtain Wall Made in as little as 5 Days (Depends on Order Size)

...

Low Price Guarantee

We’ll Guarantee the Lowest Price, and if you find a better on we will beat it by 5%

Steel Guard Safety offers Custom Vinyl Curtain Wall designs based on your facility’s needs. To discuss your project with us, you can request a quote online or call 1-800-347-8368 to speak with a representative.



Related Products:

Industrial Curtain Wall

Industrial Curtain Wall

Standard & Optional Features

2-Wheel Nylon Roller Hooks Steel Guard 3885

2-Wheel Nylon Roller Hooks

Make sliding and folding of the curtain a cinch. 2-wheel steel roller hooks are available for tall curtain systems.

#2 Toothed Brass Grommets Steel Guard 3884

#2 Toothed Brass Grommets

#2 Brass Toothed Grommets are spaced every 12 in. on center of the curtains to hang securely on the roller hooks.

Galvanized Steel Roller Track Steel Guard 3886

Galvanized Steel Roller Track

Heavy-Duty 16 gage roller track system which modularly connects track lengths to your desired length and shape. (Dim – O.D. – H-1.25″ x W-1.44″)

Track Mounting Hardware Steel Guard 3887

Track Mounting Hardware

5 Different Mounting Options Available. Including a Universal Mount to use in place for Beam to Chain, Threaded Rod, and Wall Mount. (See Mounting & Hardware)

Velcro Attachments Steel Guard 1404

Velcro Attachments

2 in. Velcro side attachments easily seal and attach both sides of curtains to multiple curtains. Available in standard 2ft x 1ft swatches, full length, or custom.

Chain Weighted Hem Steel Guard 3888

Chain Weighted Hem

Heavy-Duty 3/16 in Thick Galvanized Chain inserted into the  bottom pocket to stabilize the curtain against wind & drafts.

Work-View Clear Window Steel Guard 3889

Work-View Clear Window

20 Mil Clear PVC Window – Flame resistant & double polished for view of workers and operations. Meets CFM, & NFPA-701 standards. (Optional)

Heat Welded Interior Seams Steel Guard 1402

Heat Welded Interior Seams

Interior Seams are Electronically welded with RF Bar Sealers for an Extra tough resistance to tears. Outer Hems are sewn with a heavy-duty double-lock stitched nylon thread.

Vinyl Floor Sweep  (Add-On) Steel Guard 259

Vinyl Floor Sweep (Add-On)

Vinyl Floor Sweep – Sewn-on or Velcro Option – Seals bottom 1″ gap to seal off dust, dirt, & contaminants.

Part# CA 300 – Sewn On

Part# CA 299 – Velcro

Floor Mount D Ring Attachments  (Add-On) Steel Guard 1416

Floor Mount D Ring Attachments (Add-On)

Floor Mount D-Rings – Included with strap and buckle. Fastens the curtain to the floor protecting against wind & updrafts

Part# CA 101

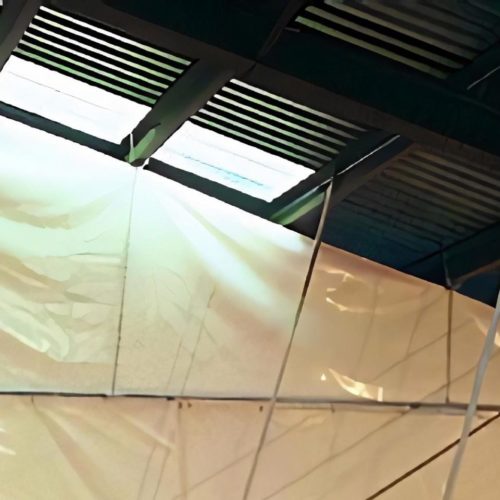

Valance Panels  (Add-On) Steel Guard 4052

Valance Panels (Add-On)

Upper Stationary Curtain Panels – Custom made to Your Ceiling Design -Ideal when the top half of an area does not need to be opened & contaminants need to be sealed off.

Part# CA 655

Adhesive Velcro  (Add-On) Steel Guard 256

Adhesive Velcro (Add-On)

2 inch Adhesive Velcro – Attaches any curtain to a brick, metal, concrete, or wood wall or door opening.

Part# CA 677 – 2″ PSA Loop

Part# CA 694 – 2″ PSA Hook

Strip Curtain Walk-Drive Through  (Add-On) Steel Guard 1415

Strip Curtain Walk-Drive Through (Add-On)

Equip your curtain with the flexibility to walk or drive through without opening your entire system. Can be equipped for Man or Forklift Traffic

Part# CA 900

Magnet Attachments (Add-On) Steel Guard 1872

Magnet Attachments (Add-On)

2 in. Magnets Attachments provide a quick and easy attaching and un-attaching of multiple curtains.

Part # CA 550 – Sew On

Part # CA 551 – Adhesive PSA

18 oz Coated Vinyl FR - Opaque

18 oz per sq/yd Coated Vinyl provides excellent Tear and Tensile Strength while also giving Superior Abrasion Resistance when Compared to Laminate Vinyls. The Vinyl Meets Flame Resistant Standards, CFM, NFPA-701 & ASTM E-84. Generally used on the top & bottom panels but can also be selected as a complete opaque curtain. For More Information on Tech Specs, See 18 oz FR Coated Vinyl Technical Specifications Here.

Industrial Curtain Walls Yellow

Yellow

Industrial Curtain Walls Red

Red

Industrial Curtain Walls Orange

Orange

Industrial Curtain Walls Champion Blue

Champion Blue

Industrial Curtain Walls Royal Blue

Royal Blue

Industrial Curtain Walls Purple

Purple

Industrial Curtain Walls Gray

Gray

Industrial Curtain Walls White

White

Industrial Curtain Walls Black

Black

Industrial Curtain Walls Tan

Tan

Industrial Curtain Walls Forest Green

Forest Green

13.5 oz Laminate Vinyl FR - Opaque

13.5 oz per sq/yd Coated Vinyl provides the most economical Vinyl Curtain Material with solid durability. The Vinyl Meets Flame Resistant Standards, CFM, NFPA-701 & ASTM E-84. Generally used on the top & bottom panels but can also be selected as a complete opaque curtain. For More Information on Tech Specs, See 13 oz FR Laminate Vinyl Technical Specifications Here.

Industrial Curtain Walls Red

Red

Industrial Curtain Walls Yellow

Yellow

Industrial Curtain Walls Blue

Blue

Industrial Curtain Walls Forest Green

Forest Green

Industrial Curtain Walls White

White

Industrial Curtain Walls Gray

Gray

Industrial Curtain Walls Black

Black

20 Mil Clear FR Vinyl - Transparent

20 Mil Thick and 16 oz per sq/yd PVC is Double Polished for completely transparent material.  The Vinyl meets Flame Resistant Standards, CFM, NFPA-701 & ASTM E-84. Generally used in the Middle of Curtains as a Work-View Window, but can be used on top, or as a completely For More Information on Tech Specs, See 20 Mil Clear FR PVC Technical Specifications Here.

Industrial Curtain Walls 20 Mil Clear

20 Mil Clear

THREADED ROD MOUNT - SUSPENDED

Mounting & Hardware

Track System is mounted in from beams or trusses with a C-Clamp, and using a 3/8″ Threaded Rod to suspend down to the desired height. The Threaded Rod Track Mounts then slide over the threaded rod. Mount Spacing can be from 4′ -8′ with taller heavier systems over 25′ being 6′ or less usually

Industrial Curtain Walls Track Splice TH C600

Track Splice
TH C600

Industrial Curtain Walls Right Angle TH C502

Right Angle
TH C502

Industrial Curtain Walls 3-Way T TH C503

3-Way T
TH C503

Industrial Curtain Walls 90 D Curve TH C601

90 D Curve
TH C601

Industrial Curtain Walls Threaded Rod Adapter TH C604 Use w/ 500s

Threaded Rod Adapter
TH C604 Use w/ 500s

Industrial Curtain Walls Universal Splice TH C900 - Sub for Threaded Rod, Beam to Chain, & Wall

Universal Splice
TH C900 - Sub for Threaded Rod, Beam to Chain, & Wall

BEAM TO CHAIN MOUNT - SUSPENDED

Mounting & Hardware

Track System is mounted in from beams or trusses with a C-Clamp, and using an S-Hook suspended down with chain to the desired height. The Track Mounts then connect the system with more S-hooks. Aircraft Cable is another option to use instead of chain. Mount Spacing can be from 4′ -8′ with taller heavier systems over 25′ being 6′ or less usually

Industrial Curtain Walls Track Splice TH C500

Track Splice
TH C500

Industrial Curtain Walls Right Angle TH C501

Right Angle
TH C501

Industrial Curtain Walls 3-Way T TH C503

3-Way T
TH C503

Industrial Curtain Walls 90 D Curve TH C501

90 D Curve
TH C501

CEILING MOUNT

Mounting & Hardware

Ceiling Mount Hardware is attached with lag bolts directly flush to ceiling, floor joists or to steel beams.

Industrial Curtain Walls Track Splice TH C200

Track Splice
TH C200

Industrial Curtain Walls Right Angle TH C202

Right Angle
TH C202

Industrial Curtain Walls 3-Way T TH C203

3-Way T
TH C203

Industrial Curtain Walls 90 D Curve TH C201

90 D Curve
TH C201

WALL MOUNT

Mounting & Hardware

For the Wall Mount installation method, track mounts are attached to walls above openings, or you can use wall end brackets to brace or stabilize the track.

Industrial Curtain Walls Track Splice (Up) TH C303

Track Splice (Up)
TH C303

Industrial Curtain Walls Track Splice (Down) TH C302

Track Splice (Down)
TH C302

Industrial Curtain Walls Wall End (Up) TH C301

Wall End (Up)
TH C301

Industrial Curtain Walls Wall End (Down) TH C300

Wall End (Down)
TH C300

FLOOR MOUNT - FREE STANDING

Mounting & Hardware

The Floor Mount System which is Free Standing, uses base plates at intervals anywhere from 4′ – 10′ depending on the height of the curtain system. The base plates attach to posts which connect to the floor mount splices.

Industrial Curtain Walls Track Splice TH C800

Track Splice
TH C800

Industrial Curtain Walls Right Angle TH C802

Right Angle
TH C802

Industrial Curtain Walls 3-Way T TH C803

3-Way T
TH C803

Industrial Curtain Walls 90 S Curve TH C801



90 S Curve
TH C801

Industrial Curtain Walls Straight Tracks6' - TH F06,  7' - TH F078' - TH F08,  9' - TH F0910' - TH F10,  12' - TH F12

Straight Tracks
6' - TH F06, 7' - TH F07
8' - TH F08, 9' - TH F09
10' - TH F10, 12' - TH F12

Industrial Curtain Walls Floor Base TH C804

Floor Base
TH C804

STRAIGHT TRACK, ROLLER HOOKS, & ACCESSORIES

Straight Tracks, Plain Connectors, Universal Mounts, End Stops, as Well as Pulleys to Customize Your Track Curtain System.

Industrial Curtain Walls 2-Wheel Nylon Roller Hook TH R101

2-Wheel Nylon Roller Hook
TH R101

Industrial Curtain Walls Roller End Stop TH R100

Roller End Stop
TH R100

Industrial Curtain Walls Plain Track Splice TH C700

Plain Track Splice
TH C700

Industrial Curtain Walls Straight Tracks 4' - TH T045' - TH T056' - TH T067' - TH T078' - TH T0810' - TH T1012' - TH T12

Straight Tracks
4' - TH T04
5' - TH T05
6' - TH T06
7' - TH T07
8' - TH T08
10' - TH T10
12' - TH T12

  1. Measure the Distance of the Width of the Curtain Laid Out
    • Steel Guard Adds 3% + 2″ to the Width Of Curtains for Drapage (Unless Custom Spec’d)
    • The Track Hardware is the Same Width as Your Order.



      2. Measure the Distance from the Floor to the Mounting Point

    • Industrial Curtains with Track come Standard 3″ Shorter to Account for the Track. (For Example a 10′ Height System Measures 9′-9″)
    • If you have a Floor Sweep the Size is the 3″ Shorter and the Floor Sweep will Drape and Inch Below the Full Measure Height
    • If you are needing to Enclose a Sloped Roof the Track Curtain  will be the Height before the Egress. We will need to make Two Triangular Panels. We will need  the “Right Side Height”, “Left Side Height, and the Width.



Iron Clad Warranty

All the Track Parts Connect Modularly

  1. Layout the Track Pieces & Connectors Along the Floor Right Below Where you Plan to Mount Them.
  2. Affix One of the End Stops Along the End of the Track (Unless Track is In-between Walls)
  3. Connect the Track on the Back Side By Sliding the In-Line Connectors Over the Track and Match Up the Holes, Use an All Wrench with Set Screws to Affix
  4. . Take First Piece of Track and Second Piece of Track and Slide the Left Side of the Next In-Line Connector and  One Piece and Right Side of the In-Line Connector.
  5. Continue this in Perpetuity Until the Track System is to End.

For More Detailed Information Take a look at our Track Installation Instructions

Iron Clad Warranty

Typically Track Spacing is Anywhere from 5′-8′ Apart.

Unless the System is very heavy and tall Spacing below 5′ will not be necessary. Most systems up to 8′ will have a “droop of less than 1/8”. This is called the Deflection. Contact one of our Reps if you are Needing Help Determining the Deflection.

Yes. This is a Flush Mount and is Generally Done with Tek Screws, but Other Screws are Acceptable. Space Holes Every 3-5″.

Yes. These are Typically Done by Spot Welding, But Only with Ceiling or Wall Mounts. Plain Straight Track with No Mounts is NOT recommended to be Welded.

Most Systems are Rather Easy and About a 3 out of 10 in Difficulty. There are Exceptions but for Most Systems it is very Easy to Install them with Your Maintenance Staff.
