 Welding Screens

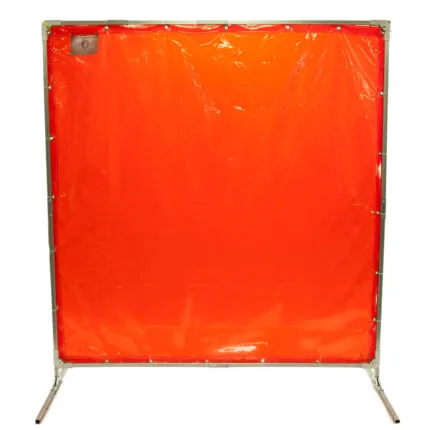

Steel Guard Safety’s Weld-Shield™ welding screens have been designed to protect your employees exposed to welding hazards and provide a sturdier option that has not been available in the past. Our portable welding screens are made to avoid the dangers of welding in MIG, TIG, plasma cutting, grinding and other specialty manufacturing areas. All Weld Screens are designed to prevent eye damage from UV flash burn, as well as keep sparks, spatter, and debris isolated.

Portable Weld-Shield Screens – Stock

  • Panel Material:  14 mil Weld-View Transparent PVC / 16 mil Clear Transparent PVC / 12 oz Olive Green Canvas – All Meet NFPA-701 & FM Global Certifications for Flame Resistance
  • Colors: Yellow (High Visibility), Orange(Medium Visibility), Blue (Medium-Low Visibility), Dark Green/Shade 8 (Little Visibility)(For Plasma Cutting /Laser Welding)
  • Frame Material: 16 Gauge HD Galvanized Steel 7/8″ Square Tube, & Connectors. The Thickest in the Industry.
  • Kit Includes: Welding Curtain with Grommets set every 1′ On Center on All Sides –  Frame: Galvanized Steel Bar Posts, Legs, Corner Clamps, and Zip Ties.
  • Panels: Connect Multiple Modularly for One, Two, Three or Four Sided Systems. (Multi-Sided Panel Kits Contain Connectors)

Ships in 5 – 7 Business Days

Additional Information:

Weld-Shield™ weld screens are specifically designed to avoid hazards and benefit your welding areas in these ways:

• Holds up to extreme abuse – 16-gage electronically galvanized square tube frame prevents bending, breaking and the need for replacement, very sturdy and durable
• Protects workers against welding arc, weld flash, sparks, fumes, dust and flying debris
• Utilizes single, 2-way, 3-way, 4-way or custom configurations to divide and create an efficient production area
• Designed to be OSHA safe and CFM & NFPA-701 certified flame resistant for welding areas
• Custom made sizes available
• 14 mil double polished polyvinyl chloride (PVC) material
• 6 different sizes and 5 different colors, 4 semi-transparent and 1 opaque. Colors include Transparent, Yellow, Aztec Orange, Blue, and Shade 8.
• Easily movable/portable throughout the work area
• Easy Assembly
• Made in the U.S.A.



Order online for stock size Weld Screens or Request a Quote. For Custom Sizes and Option contact our Sales Staff at 1-800-347-8368 to further discuss your project requirements.

Weld Shield Screens

Weld Shield Screens

14 Mil Weld-View FR Vinyl - Transparent

14 Mil Thick and 12 oz per sq/yd PVC is Double Polished and available in four transparent Colors. From Lightest to Darkest Colors: Yellow, Orange, Blue, Dark Green(Shade 8). The Vinyl meets Flame Resistant Standards of CFM, NFPA-701. Generally used in the Middle of Curtains as a Weld-View Window, but can be used as a completely Transparent Welding Curtain with UV Flash Protection. For More Information on Tech Specs, See 14 Mil Weldview FR PVC Technical Specifications Here.

Welding Screens YellowHigh VisibilityLow to Medium Amperage

Yellow

High Visibility
Low to Medium Amperage

Welding Screens OrangeMedium VisibilityMedium Amperage

Orange

Medium Visibility
Medium Amperage

Welding Screens BlueMed. Low VisibilityMedium to High Amperage

Blue

Med. Low Visibility
Medium to High Amperage

Welding Screens Dark Green (Shade 8)Little VisibilityHigh Amperage such as Plasma Cutting

Dark Green (Shade 8)

Little Visibility
High Amperage such as Plasma Cutting

Welding Screens Clear Not for Welding

Clear
Not for Welding

12 oz Canvas FR - Pyrosnuff - Opaque

12 oz Canvas material is treated with a Flame Retardant Coating also known as pyrosnuff. The material after coating finished 18 oz sq/yd. This Canvas Material is very abrasion resistant and holds up to wear as well as a slightly higher heat and slag than PVC>

Welding Screens Olive Green

Olive Green

Welding Screen Layouts

All Weld Shield Screens can be modularly connected in 2,3,4 or Multi-Sided Variations. Create custom designs for a weld barrier that fits your shops needs.
