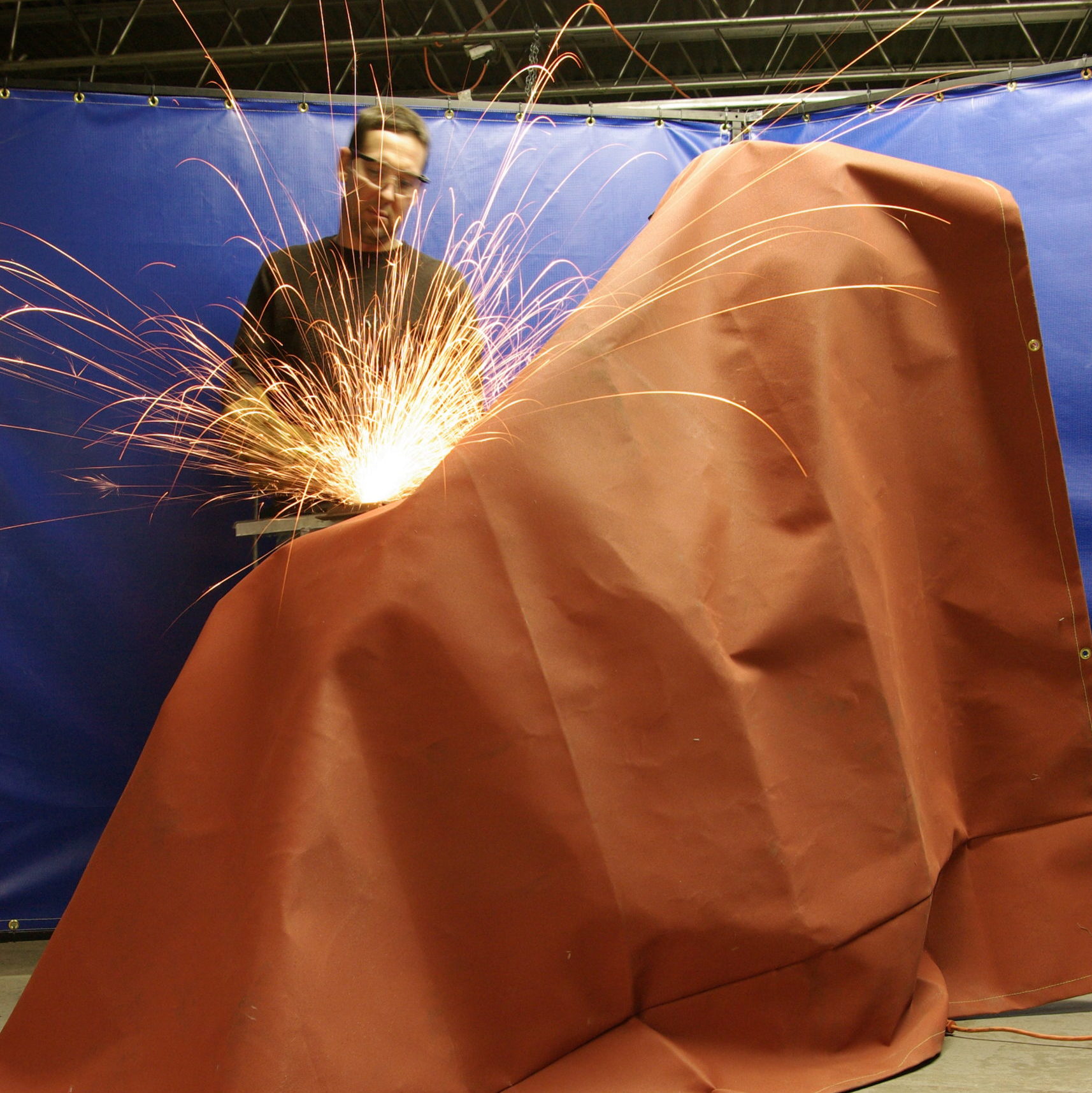

Silicone Coated Fiberglass Welding Blanket – Red Spark
Steel Guard’s Red Spark silicone coated fiberglass welding blankets combine a high-grade fiberglass base with a silicone rubber coating for superior abrasion resistance, flexibility, and electrical insulation in heavy industrial welding and heat shield applications. Rated to 500°F for the silicone layer and 1,000°F for the fiberglass base, Red Spark blankets meet military specification Mil-Y-1140C — making them one of the most versatile and durable welding blankets in our lineup.
Red Spark silicone coated weld blankets are a favorite in heavy industry for their combination of extreme flexibility and abrasion resistance — qualities that standard fiberglass blankets cannot match. Grommets are set every 24″ on all sides for secure hanging and attachment. Not recommended for stress relief applications. Part of the Steel Guard welding blanket lineup — compare all materials to find the right protection for your application.
Red Spark Silicone Coated Welding Blanket Specifications
- Material: 32 oz red silicone coated fiberglass, .035 inch thick
- Temperature rating: 500°F for silicone layer — 1,000°F for fiberglass base
- Construction: Sewn with high-heat thread — grommets set every 24″ on all sides
- Size note: Finished blanket sizes run 2″–4″ shorter than nominal dimensions
- Military specification: Meets Mil-Y-1140C
- Certifications: FM Global and NFPA-701 flame retardancy certified
- Ships in: 7–10 business days
- Note: Not for use in stress relief applicatio
Additional Information:
What Makes Silicone Coated Fiberglass Different
Standard fiberglass welding blankets provide spark and spatter protection but have two weaknesses — they are susceptible to abrasion damage and can be rigid and difficult to conform to irregular shapes. The silicone rubber coating on Red Spark blankets addresses both:
- Extreme abrasion resistance — the silicone coating protects the fiberglass base from physical wear, dramatically extending blanket life in environments where blankets are regularly dragged, stepped on, or exposed to rough surfaces
- Superior flexibility — silicone coated fiberglass remains highly flexible even in cold environments, making it easier to drape over equipment, wrap around pipes, and conform to irregular shapes
- Electrical insulation — the silicone layer provides superior electrical insulation properties, important in environments with live electrical equipment near welding operations
- Chemical resistance — silicone coating resists oil, grease, and many industrial chemicals better than uncoated fiberglass
- Military specification compliance — Mil-Y-1140C certification makes Red Spark suitable for defense and government contractor applications requiring mil-spec welding protection
Red Spark Silicone Coated Welding Blanket Applications
- Heavy industry heat shields and thermal barriers
- Equipment covers during welding and cutting operations
- Horizontal plane coverage in fabrication and manufacturing
- Vertical curtain applications requiring abrasion resistance
- Defense and military contractor welding operations
- Pipe and structural steel protection in abrasive environments
- Electrical insulation barriers near live equipment
- Industrial maintenance applications requiring flexible, durable protection
Related Welding Blanket Products
Need a different material for your application? Steel Guard also manufactures:
- White Spark Silica Welding Blankets — 1,800°F rated silica cloth for stress relief, heat treating, and foundry applications
- Knight Armor Carbon Fiber Welding Blankets — scratch-free PANOX felt rated to 3,000°F intermittent for extreme applications
Questions about Red Spark silicone coated welding blankets? Call us at 1-800-347-8368 or request a quote online — our team will help you select the right blanket for your application.
A silicone coated fiberglass welding blanket uses a woven fiberglass fabric as its base material, coated on both sides with a silicone rubber compound. The fiberglass provides the high-temperature resistance and flame protection while the silicone coating adds abrasion resistance, flexibility, electrical insulation, and chemical resistance that uncoated fiberglass cannot provide.
Red Spark silicone coated fiberglass welding blankets have a dual temperature rating — the silicone coating layer is rated to 500°F and the fiberglass base is rated to 1,000°F. For applications exceeding 500°F where the silicone coating would degrade, the fiberglass base continues to provide protection up to 1,000°F
Mil-Y-1140C is a U.S. military specification for silicone rubber coated fiberglass yarn and fabric used in high-temperature insulation and protection applications. Red Spark blankets meeting this specification are manufactured to the quality and performance standards required for military and defense contractor applications, in addition to standard commercial industrial use.
No — Red Spark silicone coated fiberglass welding blankets are not recommended for stress relief applications. For stress relief heat treating applications, our White Spark silica fabric welding blankets are the appropriate choice, offering continuous 1,800°F service temperature with the thermal stability required for stress relief procedures.
Red Spark silicone coated welding blankets include grommets set every 24 inches on all sides for secure hanging, attachment, and positioning in vertical curtain and overhead heat shield applications. The grommet spacing allows the blanket to be tied, hooked, or fastened at multiple points for stable installation in demanding industrial environments.
