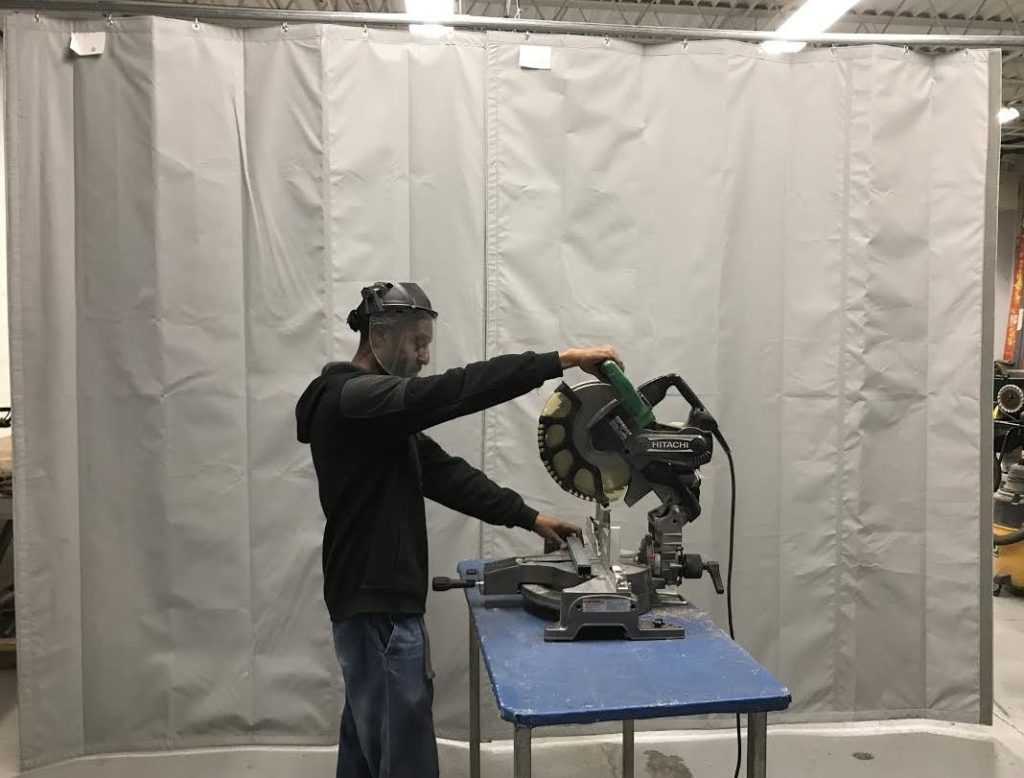

Steel Guards Folding Sound Shield Curtains provide industrial noise control for industrial environments to block sound from machinery, HVAC, compressors and more. These Heavy Curtains for Soundproofing are the highest rated STC measurement available for this unique fan folding design. The Industrial Noise Control Curtains are made from an extremely dense mass loaded septum that has a unique fan folding design to move in and out of the way in seconds.

Industrial Soundproofing Curtains are excellent at preventing hearing loss which can occur as low as 85 decibels the level of noise of city traffic. Keep your industrial plant free of this noise and OSHA out of your plant by utilizing Steel Guards Sound Shield Fold-A-Way noise control curtains.

Protect Your Staff from Noise-Induced Hearing Loss (NIHL)

Steel Guard’s Industrial Sound Curtains can absorb this dangerous noise and act as an effective sound barrier in these and many other applications:
[one_half]

  • Punch Presses
  • Compressors
  • Grinders
  • Pumps
  • Compactor Noise Control
  • Granulators
  • Quiet Rooms
  • Stamping Press Enclosures[/one_half][one_half]
  • Blower Enclosures
  • Generators
  • SoundProof Curtains
  • Pile Driver Applications
  • Chillers
  • Product Testing Chambers
  • Facility Shipping/Receiving Docks



Additional Information:

Industrial Sound Dampening Curtains with a Compact, Folding Design

Sound Shield Fold-A-Way is manufactured with a heavy-duty 1.5 pounds per square foot mass loaded barrier (the heaviest standard in the industry) sandwiched around 18 oz coated vinyl to provide a high STC 30 rating. These curtains are made with a fan folding design that compacts to about 5% of coverage area and folds neatly away. Available in 5 different track mounting options. Custom made to your designed height, width, and color.

Contact us via our request-a-quote form to quote or order Sound Shield Industrial Noise Control Curtains or call us at 1-800-347-8368, and one of our insides sales reps will discuss your application requirements with you.

Sound Transmission Loss

Frequency 125 250 500 1000 2000 4000 STC*
13 17 27 34 40 47 30

*STC- Sound Transmission Class

Sound Shield Folding Sound Curtains

Sound Shield - Folding Septum

Sound Shield - Folding Septum

3 Layer Construction – Manufactured with an Super Heavy Duty Mass Loaded Septum Barrier sandwiched around it with 2 Layers of 18 oz Coated Vinyl

#2 Toothed Brass Grommets

#2 Toothed Brass Grommets

#2 Heavy-Duty Brass Toothed Grommets are spaced every 12″ on center of the curtains to hang securely on the roller hooks.

Velcro Attachments

Velcro Attachments

2″ Velcro side attachments easily seal and attach multiple curtains. Standard Panels are Modular and 4″ in Width for Easier Installation.Full Length Velcro Standard.

Galvanized Steel Roller Track

Galvanized Steel Roller Track

Heavy-Duty 16 gage roller track system which modularly connects track lenghts to your desired shape and length. (Dimension O.D. – H-1.25″ x W-1.44″) Available in Suspended Mounts – Threaded Rod or Beam to Chain, Ceiling, Floor Mount, and Beam Flange Mount. See Hardware Options Here.

Nylon or Steel Rollers

Nylon or Steel Rollers

Make sliding and folding of the curtain a cinch. 2-wheel steel roller hooks are available for tall curtain systems.
