Sound Absorbing Blankets | Industrial Sound Blankets

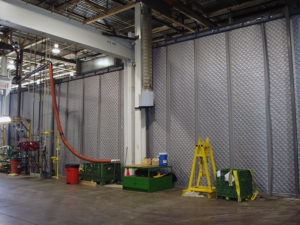

Industrial Noise Control Curtain at Olympus Factory Blocking Low Hertz Sound

Steel Guard’s Sound Shield™ Sound Proof Blankets are used in Industrial & Commercial Rooms where sound is needing to be absorbed as well as reverberations and echoing stopped. These Acoustical Blankets are made from either a 1”, 2”, or even 4” Sound Absorbing Blankets as well as the option for noise blocking using mass loaded vinyl on the back end on our SCC -12 and SCC-13 material versions.






Benefits of Sound Shield™ Soundproof Blankets

Acoustical Wall Blanket hemmed with grommets on top and sides

  • Stops Poor Acoustical Conditions which Create Fatigue, Stress, Hearing Damage, and even Depression.
  • Keeps Communication, and Speech Levels Intelligible, making Work Tasks, Leaner and Quicker.
  • Can be Used on Walls, Ceilings, or Doorways, to Block Noise and are as low as 20% the cost of Drywall Construction.
  • Can be Custom Designed to Cover Piping, Machinery, & Encase Noise Emitting and Vibrating Items.
  • No Worries of Fire Marshall Inspections as the Material is Certified ASTM E-84 Class One for Use Against or As Interior Walls.




Sound Blanket inside Commercial TheaterSoundproofing Blankets for Walls in Any Situation

Industrial Sound Absorbing Blankets from Steel Guard are made to attach to walls through grommets punched on the top and sides. The Blankets are then best used to attach to walls with a screw anchor and a washer, but other methods are possible. Custom design Industrial Acoustic Blankets Velcro, straps, buckles, and extra grommets can be added. Use them in Temporary Construction Sites, Factories, Power Plants, Pump Stations, & More.




Types of Sound Absorbing Blankets

For more information on Acoustic Industrial Blankets or to Design A Custom Layout with our Experienced Staff, Fill out our Request a Quote Form, or Call us at 1-800-347-8368.

  • 1″ Fiberglass Batting with Vinyl Quilted Face – NRC .70 – See More Details
  • 2″ Fiberglass Batting with Vinyl Quilted Face – STC 19 – See More Details
  • 1″ Fiberglass Batting with Vinyl Quilted Front Plus 1 lb/sq ft Mass Loaded Vinyl Back – STC 27 – See More Details
  • 2″ Fiberglass Batting with Vinyl Quilted Front Plus 1 lb/sq ft Mass Loaded Vinyl Back – STC 32 – See More Details

SCC-8

Random Incidence Sound Absorption

Frequency ( Hertz )

Model Number125250500100020004000NRC
SCC-8.12.47.85.84.64.62.70

SCC-9

SOUND ABSORPTION (HZ) PER ASTM C423

Model Number125250500100020004000NRC
SCC-9.19.99.96.80.57.33.85

SOUND TRANSMISSION LOSS (HZ) PER ASTM E90-75

Model Number125250500100020004000STC
SCC-96111520253219*

SCC-12 SCC-13

SOUND ABSORPTION (HZ) PER ASTM C423

Model NumberThickness125250500100020004000NRC
SCC-121″0.120.470.850.840.640.620.70
SCC-132″0.070.270.961.131.08.99.85

SOUND BLOCKING PERFORMANCE (HZ)

Model NumberThickness125250500100020004000STC
SCC-121″11162430353527
SSC-132″13202940505532

Request a QuoteRequest a Quote
U.S. manufactured, iron-clad protected. Discover the unrivaled performance of our steel-scrim vinyl.
