Industrial Portable Noise Screens

Portable Sound Barriers from Steel Guard offer a versatile way to isolate noise from workers, and machinery. Sound Shield Acoustic Screens effectively absorb and block industrial noise with a combination of quilted acoustic fiberglass and mass loaded composite materials. The quilted barrier reduces and reflects ambient noise while the mass loaded septum acts as blocker of lower hertz frequencies.

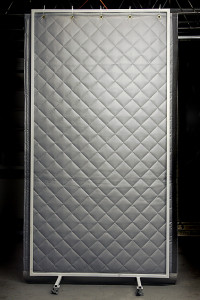

The Portable Noise Screens are modular and can be fitted with hinges to make a two, three, or four-sided enclosure with adjustable radius corners. Create a Single Sound Barrier Wall that’s adjustable. The Screens can also be fitted with caster wheels to be moved in and out of the way as needed, if a static location is not desired. The frame is Steel Guard’s heavy duty 16 gage galvanized steel frame, that is very resistant to buckling and damage, unlike the typical 18 gage frames on the market.

Common Applications for Acoustic Screens

Use them in these Common Industrial Applications to Block Sound

  • Compressor Enclosure
  • Grinders & Saws
  • Printing Press Enclosures
  • Equipment Noise Barriers
  • Blower Sound Barrier

Additional Information:

Materials for Portable Sound Barriers

For More information on Acoustic Panels or to get a quote contact our experienced Sales Staff about designing panels for your application at 1-800-347-8368.

  • SCC-10 – 1″ Fiberglass Batting with Vinyl Quilted Front Plus 1 lb/sq ft Mass Loaded Vinyl Plus 1″ Fiberglass Back with Quilted Vinyl – STC 29 – See More Details
  • SCC-12 – 1″ Fiberglass Batting with Vinyl Quilted Front Plus 1 lb/sq ft Mass Loaded Vinyl Back – STC 27 – See More Details
  • SCC-13 – 2″ Fiberglass Batting with Vinyl Quilted Front Plus 1 lb/sq ft Mass Loaded Vinyl Back – STC 32 – See More Details

SEE MATERIALS TAB FOR MORE DETAILS

Sound Shield Acoustic Screens

Sound Shield Acoustic Screens

SCC-10

Front - 1" Vinyl Quilted Fiberglass + Interior - 1 lb/sq ft Mass Loaded Vinyl + Back - 1" Vinyl Quilted FiberglassNRC .75STC 29

Front - 1" Vinyl Quilted Fiberglass + Interior - 1 lb/sq ft Mass Loaded Vinyl + Back - 1" Vinyl Quilted Fiberglass
NRC .75
STC 29

SOUND ABSORPTION (HZ) PER ASTM C423

Model Number 125 250 500 1000 2000 4000 NRC
SCC-10 .18 .62 .89 .84 .60 .45 .75

SOUND TRANSMISSION LOSS (HZ) PER ASTM E90 & E413

Model Number Barrier 125 250 500 1000 2000 4000 STC
SCC-10 1 lb. 12 16 27 40 44 43 29
SSC-11 2 lb. 19 22 28 40 56 61 33

SCC-12 & SCC-13

Front - 1" Vinyl Quilted Fiberglass + 1 lb/sq ft Mass Loaded Vinyl NRC .70STC 27

Front - 1" Vinyl Quilted Fiberglass + 1 lb/sq ft Mass Loaded Vinyl
NRC .70
STC 27

Front - 2" Vinyl Quilted Fiberglass + - 1 lb/sq ft Mass Loaded Vinyl Back NRC .70STC 27

Front - 2" Vinyl Quilted Fiberglass + - 1 lb/sq ft Mass Loaded Vinyl Back
NRC .70
STC 27

SCC-13

SOUND ABSORPTION (HZ) PER ASTM C423

Model Number Thickness 125 250 500 1000 2000 4000 NRC
SCC-12 1″ 0.12 0.47 0.85 0.84 0.64 0.62 0.70
SCC-13 2″ 0.07 0.27 0.96 1.13 1.08 .99 .85

SOUND BLOCKING PERFORMANCE (HZ)

Model Number Thickness 125 250 500 1000 2000 4000 STC
SCC-12 1″ 11 16 24 30 35 35 27
SSC-13 2″ 13 20 29 40 50 55 32
