Outdoor & Construction Sound Curtains

Steel Guard Manufactures a Variety Outdoor Sound Barrier Curtains & Panels for Sound Attenuation designed for Permanent Installation in Commercial and Industrial Sites. These Sound Curtains are made to adhere to Walls or Fences on Outdoor Locations where Noise Pollution is Conflicting with Public or Residential areas.

These Outdoor Noise Curtains are designed to be permanently fitted at the location site. The material options our either are Standard Duty Vinyl Laminate with a Silicone Coating or our Heavy Duty versions uses an 18 oz Coated Vinyl Exterior that can stand up to in-climate weather for years. . Options for our Outdoor Sound Curtains include a 2 inch or 4 inch thick sound absorbing fiberglass by itself or an addition a mass loaded vinyl for extra sound blocking. The Mass Loaded Vinyl backing blocks unwanted noise pollution into areas outside of the Enclosed Area.



Benefits of Sound Shield™ Outdoor Noise Barriers

  • Stops Noise Pollution From Demolition, Digging, Compressors, Jack Hammers, Back Hoes, & More.
  • Keeps Communication, and Speech Levels Intelligible, making Construction Workers Tasks, Leaner and More Efficient.
  • Keeps OSHA Safe Noise Levels for your Construction Crew, as well as Noise Levels for Adjacent Residential or Commercial Public Areas.
  • Can be Custom Designed to Adhere to Fences or Outdoor Concrete Walls with Not Just Grommets, but Custom Frame with Adhering Aluminum Bar Stock with Clamps & Attachment

Additional Information:

Types of Outdoor Sound Barrier Curtains

For more information on designing your Outdoor Sound Curtain, or do get a quote, contact one of our Experienced Sales Staff at 1-800-347-8368

SEE MATERIALS SECTION FOR MORE DETAILED SOUND ATTENUATION CHARTS

  • SCC-9 EXT – Silicone Coated Vinyl Front and Back Quilted to a 2″ Fiberglass Batting – STC 19
  • SCC-12 EXT – Silicone Coated Vinyl Front Quilted to a 1″ Fiberglass Batting and a Reinforced 1 lb Mass Loaded Vinyl (MLV) Back – STC 27
  • SCC-13 EXT – Silicone Coated Vinyl Front Quilted to a 2″ Fiberglass Batting and a Reinforced 1 lb Mass Loaded Vinyl (MLV) Back – STC 32
  • SCC-15 – 18 oz Coated Vinyl Front and Back Adhered to a 2″ Fiberglass Batting – STC 21 – See More Details
  • SCC-16 – 18 oz Coated Vinyl Front Adhered to a 1″ Fiberglass Batting and a Reinforced 1 lb Mass Loaded Vinyl (MLV) Back

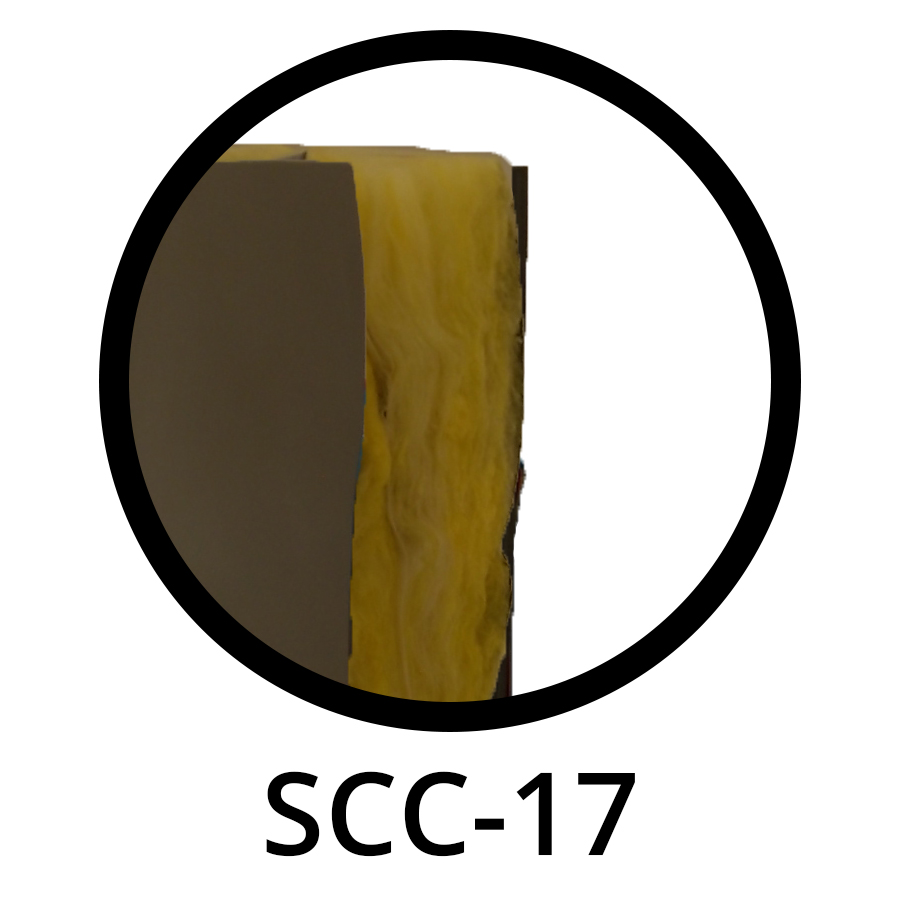

  • SCC-17 – 18 oz Coated Vinyl Front Adhered to a 2″ Fiberglass Batting and a Reinforced 1 lb Mass Loaded Vinyl (MLV) Back
  • SCC-18 – 18 oz Coated Vinyl Front Adhered to a 4″ Fiberglass Batting and a Reinforced 1 lb Mass Loaded Vinyl (MLV) Back

Outdoor Sound Shield Curtains

Outdoor Sound Shield Curtains

Standard & Optional Features

SCC Outdoor Materials Steel Guard 451

SCC Outdoor Materials

Vinyl Quilted Fiberglass Materials combined with Mass Loaded Vinyl. Several Options. See Details in Materials Tab or Spec Sheets below.

SCC-9 EXT Page
SCC-12 EXT Page
SCC-13 EXT Page
SCC-15 Page
SCC-16 Page

See Other Noise Control Materials Here

 Brass Grommets Steel Guard 4144

Brass Grommets

Heavy-Duty Brass Toothed Grommets are spaced every 12″ on center on Top, Bottom, and Sides (Optional)

Velcro Attachments Steel Guard 4148

Velcro Attachments

2 in. Velcro side attachments easily seal and attach both sides of curtains to multiple curtains. Standard is in full Lengths of the Curtains.

Outdoor Sound Curtain Materials - Standard

2" Silicone Coated Vinyl Front and Back Quilted on FiberglassNRC .75STC 19

2" Silicone Coated Vinyl Front and Back Quilted on Fiberglass
NRC .75
STC 19

Front - 1" Silicone Coated Vinyl Quilted Fiberglass + Interior - 1 lb/sq ft Mass Loaded Vinyl + Back - 1" Vinyl Quilted FiberglassNRC .70STC 27

Front - 1" Silicone Coated Vinyl Quilted Fiberglass + Interior - 1 lb/sq ft Mass Loaded Vinyl + Back - 1" Vinyl Quilted Fiberglass
NRC .70
STC 27

Front - 2" Silicone Coated Vinyl Quilted Fiberglass + Interior - 1 lb/sq ft Mass Loaded Vinyl + Back - 1" Vinyl Quilted FiberglassNRC .85STC 32

Front - 2" Silicone Coated Vinyl Quilted Fiberglass + Interior - 1 lb/sq ft Mass Loaded Vinyl + Back - 1" Vinyl Quilted Fiberglass
NRC .85
STC 32

SCC-9 EXT, SCC-12 EXT, SCC-13 EXT

SOUND ABSORPTION (HZ) PER ASTM C423

Model Number 125 250 500 1000 2000 4000 NRC
SCC-9 EXT .19 .99 .96 .80 .57 .33 .85



SOUND TRANSMISSION LOSS (HZ) PER ASTM E90-75

Model Number 125 250 500 1000 2000 4000 STC
SCC-9 EXT 6 11 15 20 25 32 19*



SOUND ABSORPTION (HZ) PER ASTM C423

Model Number Thickness 125 250 500 1000 2000 4000 NRC
SCC-12 EXT 1″ 0.12 0.47 0.85 0.84 0.64 0.62 0.70
SCC-13 EXT 2″ 0.07 0.27 0.96 1.13 1.08 .99 .85



SOUND BLOCKING PERFORMANCE (HZ)

Model Number Thickness 125 250 500 1000 2000 4000 STC
SCC-12 EXT 1″ 11 16 24 30 35 35 27
SSC-13 EXT 2″ 13 20 29 40 50 55 32

Outdoor Sound Curtain Materials - Heavy Duty

Front - 2" Thick 18 oz Vinyl over Fiberglass + Interior - 1 lb/sq ft Mass Loaded Vinyl + Back - 1" Vinyl Quilted FiberglassNRC .75STC 21

Front - 2" Thick 18 oz Vinyl over Fiberglass + Interior - 1 lb/sq ft Mass Loaded Vinyl + Back - 1" Vinyl Quilted Fiberglass
NRC .75
STC 21

Front - 1" Thick 18 oz Vinyl Over Fiberglass + Interior - 1 lb/sq ft Mass Loaded Vinyl + Back - 1" Vinyl Quilted FiberglassNRC .65STC 29

Front - 1" Thick 18 oz Vinyl Over Fiberglass + Interior - 1 lb/sq ft Mass Loaded Vinyl + Back - 1" Vinyl Quilted Fiberglass
NRC .65
STC 29

Front - 2" Thick 18 oz Vinyl Over Fiberglass + Interior - 1 lb/sq ft Mass Loaded Vinyl + Back - 1" Vinyl Quilted FiberglassNRC .75STC 33

Front - 2" Thick 18 oz Vinyl Over Fiberglass + Interior - 1 lb/sq ft Mass Loaded Vinyl + Back - 1" Vinyl Quilted Fiberglass
NRC .75
STC 33

Front - 4" Thick 18 oz Vinyl Over Fiberglass + Interior - 1 lb/sq ft Mass Loaded Vinyl + Back - 1" Vinyl Quilted FiberglassNRC .95STC 34

Front - 4" Thick 18 oz Vinyl Over Fiberglass + Interior - 1 lb/sq ft Mass Loaded Vinyl + Back - 1" Vinyl Quilted Fiberglass
NRC .95
STC 34

SCC-15

SOUND ABSORPTION (HZ) PER ASTM C423

Model Number 125 250 500 1000 2000 4000 NRC
SCC-15 .46 .94 .85 .64 .47 .33 .75



SOUND TRANSMISSION LOSS (HZ) PER ASTM E90 & E 413

Model Number 125 250 500 1000 2000 4000 STC
SCC-15 9 14 19 21 27 34 21



SCC-16 SCC-17 SCC-18

SOUND ABSORPTION (HZ) PER ASTM C423

Model Number Thickness 125 250 500 1000 2000 4000 NRC
SCC-16 1″ 0.18 0.68 0.74 0.72 0.42 0.29 0.65
SCC-17 2″ 0.45 0.96 0.87 0.66 0.47 0.28 0.75
SCC-18 4″ 0.67 1.05 0.97 0.84 0.86 0.52 0.95



SOUND TRANSMISSION LOSS (HZ) PER ASTM E90 & E413

Model Number Thickness 125 250 500 1000 2000 4000 STC
SCC-16 1″ 15 17 28 40 45 52 29
SSC-17 2″ 14 20 32 41 42 41 33
SSC-18 4″ 16 21 30 41 52 56 34
