Sound Enclosures from Steel Guard are custom made from our SCC-10-, SCC-11, SCC-12, SCC-13, or custom designed composite combinations of Mass Loaded Vinyl and Fiberglass sound absorbing material. These Acoustic Blanket Panels absorb sound inside a contained area to keep the noise energy away from other operations in the manufacturing facility. This lowers noise levels effectively reduce stress and fatigue, and are commonly used in industrial applications. Our Sound Shield Acoustic Enclosures are also available in Outdoor Grade Coated Vinyl Exterior to stand up to extreme weather and temperatures.

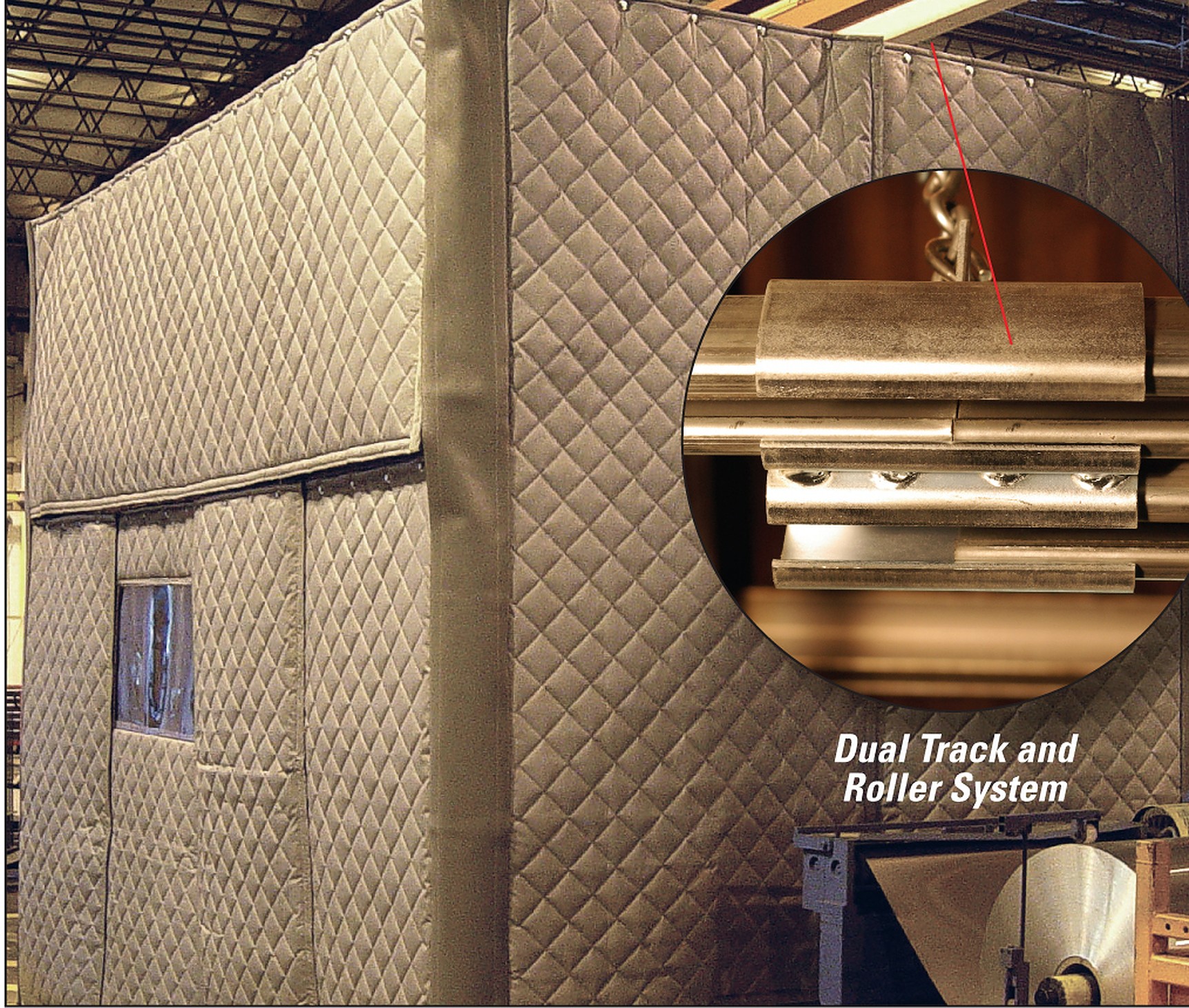

These Acoustic Enclosures are custom configured with Steel Guards Fiberglass Sound Absorption & Blocking Materials sewn together along with grommets, Velcro or other attachments to build the booth. This surrounds a Metal Framing System along with an optional Sliding Curtain Track for easy access to the Sound Booth.
• Machine & sound Enclosures
• Quiet Rooms
• Sound Booths
• Control Rooms & OC rooms
• Power Plant Offices
• Generator Enclosures
• Outdoor Noise Barriers
• Printing Press Enclosures
• Product Testing Chambers
SEE MATERIALS TAB FOR MORE DETAILS
SCC-10 – 1″ Fiberglass Batting with Vinyl Quilted Front Plus 1 lb/sq ft Mass Loaded Vinyl Plus 1″ Fiberglass Back with Quilted Vinyl – STC 29 – See More Details
SCC-11 – 1″ Fiberglass Batting with Vinyl Quilted Front Plus 2 lb/sq ft Mass Loaded Vinyl Plus 1″ Fiberglass Back with Quilted Vinyl – STC 33 – See More Details
SCC-12 – 1″ Fiberglass Batting with Vinyl Quilted Front Plus 1 lb/sq ft Mass Loaded Vinyl Back – STC 27 – See More Details
SCC-13 – 2″ Fiberglass Batting with Vinyl Quilted Front Plus 1 lb/sq ft Mass Loaded Vinyl Back – STC 32 – See More Details
Contact our Sales Staff to help you design the Sound Booth Enclosure for your Industrial Applications at 1-800-347-8368 to discuss your application or fill out our form online.
Industrial Sound Blanket Material can be wiped down with a rag, or cleaned with a broom to remove dirt and debris from the surface. Any Non Exposed Surface can be cleaned with typical house hold or industrial solvent and detergents.
SCC Materials
Vinyl Quilted Fiberglass Materials combined with Mass Loaded Vinyl. Several Options. See Details in Materials Tab or Spec Sheets below.
SCC-10 Page
SCC-11 Page
SCC-12 Page
SCC-13 Page
#4 Brass Grommets
#4 Heavy-Duty Brass Toothed Grommets are spaced every 12″ on center of the curtains to hang securely on the roller hooks.
Nylon & Steel Roller Hooks
Used to Hang the Side Curtains in a Stationary Cell or by Using Dual Track Hardware to Slide them Behind Each Other. Larger Systems over 10′ Tall Usually need Steel Roller Hooks.
Part# TH R102 – Steel Roller Hooks
Dual or Single Track Mounting Hardware
Single Track or Dual Track for Sliding Curtains Behind Each Other. 5 Different Mounting Options Available. Including a Universal Mount to use in place for Beam to Chain, Threaded Rod, and Wall Mount. (See Mounting & Hardware Tab)
Sound Shield Roof Panels
Custom Designed Truss Grids with SCC Materials Laid on Top Can be Manufactured to Cover the Roof for Even More Sound Attenuation.
Model Number | 125 | 250 | 500 | 1000 | 2000 | 4000 | NRC |
---|---|---|---|---|---|---|---|
SCC-10 & SCC-11 | .18 | .62 | .89 | .84 | .60 | .45 | .75 |
Model Number | Barrier | 125 | 250 | 500 | 1000 | 2000 | 4000 | STC |
---|---|---|---|---|---|---|---|---|
SCC-10 | 1 lb. | 12 | 16 | 27 | 40 | 44 | 43 | 29 |
SSC-11 | 2 lb. | 19 | 22 | 28 | 40 | 56 | 61 | 33 |
Model Number | Thickness | 125 | 250 | 500 | 1000 | 2000 | 4000 | NRC |
---|---|---|---|---|---|---|---|---|
SCC-12 | 1″ | 0.12 | 0.47 | 0.85 | 0.84 | 0.64 | 0.62 | 0.70 |
SCC-13 | 2″ | 0.07 | 0.27 | 0.96 | 1.13 | 1.08 | .99 | .85 |
Model Number | Thickness | 125 | 250 | 500 | 1000 | 2000 | 4000 | STC |
---|---|---|---|---|---|---|---|---|
SCC-12 | 1″ | 11 | 16 | 24 | 30 | 35 | 35 | 27 |
SSC-13 | 2″ | 13 | 20 | 29 | 40 | 50 | 55 | 32 |
