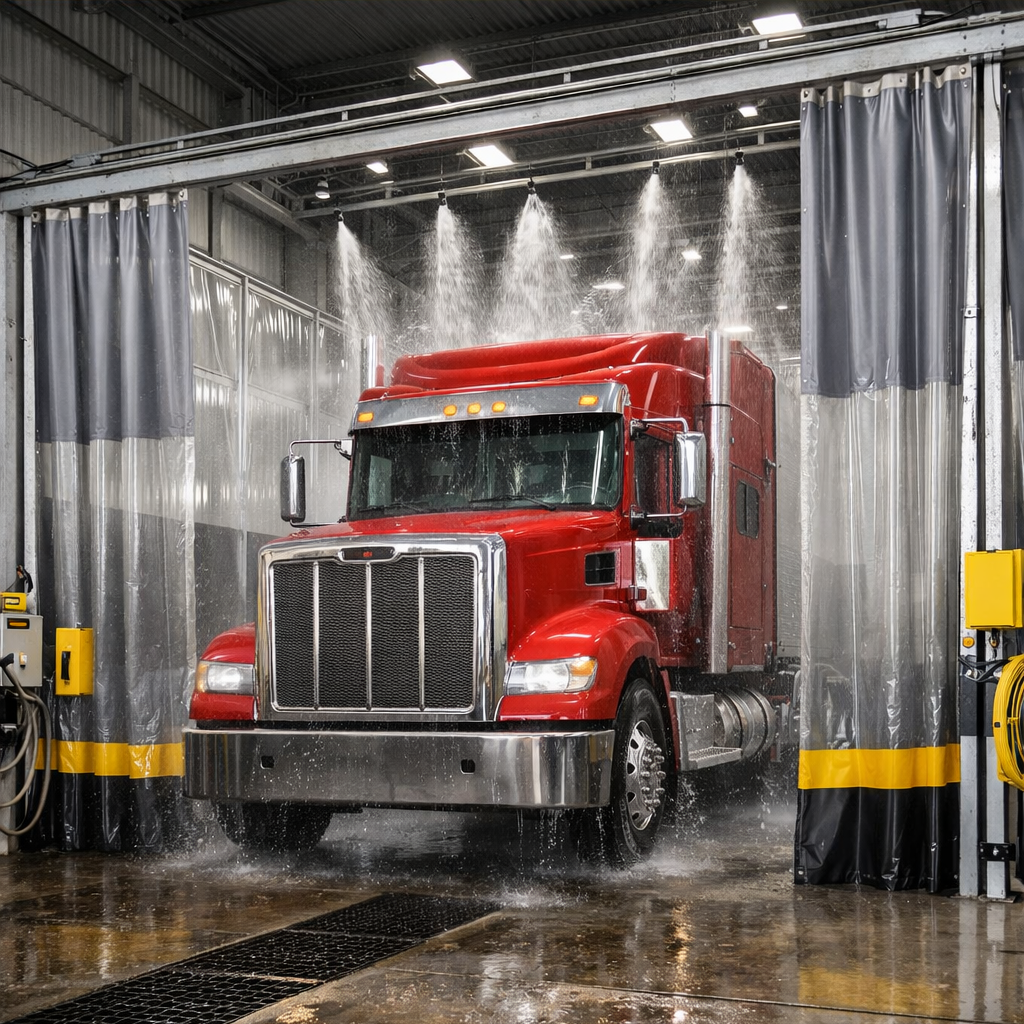

Heavy Equipment Wash Bay Enclosures
Heavy Equipment Wash Bay Systems – Industrial Washdown Containment for Demanding Facilities
A properly designed heavy equipment wash bay is critical for facilities that clean large machinery, fleet vehicles, and industrial equipment. Steel Guard Safety provides custom-engineered wash bay enclosure systems that help contain overspray, manage wastewater, and protect surrounding work areas—without permanent construction.
Our wash bay systems are trusted by municipalities, contractors, manufacturers, and maintenance operations that need durable, compliant, and flexible washdown containment built for real-world industrial use.
Why Heavy Equipment Wash Bays Are Essential
Uncontained washdown operations can quickly lead to water migration, chemical exposure, slip hazards, and environmental violations. A Steel Guard Safety heavy equipment wash bay enclosure creates a controlled wash zone that helps you:
-
Contain overspray, runoff, and debris
-
Protect workers and nearby equipment
-
Improve facility cleanliness and safety
-
Support OSHA and EPA compliance efforts
-
Reduce long-term maintenance and liability
Unlike concrete or framed walls, our systems provide a cost-effective, modular alternative that installs quickly and adapts as your operation changes.
Containing water and residue inside a defined wash bay also helps reduce slip-and-fall risks, supporting safer facilities in accordance with OSHA walking-working surface safety standards.
Engineered for High-Pressure, Heavy-Duty Washdown
Steel Guard Safety wash bay systems are built specifically for industrial wash environments involving pressure washing, degreasers, detergents, and repeated exposure to moisture.
Key System Advantages
-
Industrial-Grade Vinyl Curtains
Heavy-duty PVC-coated fabric resists water, chemicals, oils, and mildew. -
Overspray & Containment Control
Curtains and panels prevent wash water and contaminants from spreading into adjacent work zones. -
Modular & Reconfigurable Design
Expand, relocate, or reconfigure your wash bay as equipment or workflows change. -
Indoor & Outdoor Capable
Outdoor-rated materials and corrosion-resistant hardware available. -
Fast Installation with Minimal Disruption
No concrete, framing, or long construction timelines required.
Facilities often pair wash bay systems with other containment solutions such as
Additional Information:
Iron Clad Warranty
6 Year Warranty on Construction and the Peace of Mind of Covering Any Related OSHA Fines. Learn More
Rush Manufacturing
Get your Custom Auto Body Curtain Wall Made in as little as 5 Days (Depends on Order Size)
Low Price Guarantee
We’ll Guarantee the Lowest Price, and if you find a better on we will beat it by 5%
Wash Bay Curtains
Standard Features & Options
2-Wheel Nylon Roller Hooks
Make for easy sliding and folding of the wash bay curtains. 2-wheel steel roller hooks are available for taller curtain systems.
#2 Toothed Brass Grommets
#2 Brass Toothed Grommets are spaced every 12″ on center of the wash bay curtains to hang securely on the roller hooks.
Galvanized Steel Roller Track
Heavy-Duty 16 gage roller track system which modularly connects track lengths to your desired shape or length. (Dim – O.D. – H-1.25″ x W-1.44″)
Track Mounting Hardware
5 Different Mounting Options Available Including Universal Mount to use in place for Beam to Chain, Threaded Rod, and Wall Mounts.
Velcro Attachments
2″ Velcro side attachments easily seal and attach both sides of the wash bay curtains to multiple curtains. Available in standard 2 x 1′ swatches, full length, or custom.
Chain Weighted Hem
Heavy-Duty 3/8 inch Thick Galvanized Chain inserted into the bottom pocket to stabilize the curtain against drafts.
Work-View Clear Window
20 Mil PVC Window – Flame Retardant & double polished for a clear view of workers and operations. Meets CFM, & NFPA-701 standards. (Optional)
Heat Welded Interior Seams
Interior Seams are electronically welded with RF Bar Sealers for an extra tough resistance to tears. Outer Hems are sewn with a heavy-duty double-lock stitched nylon thread.
Floor Sweeps (Add-On)
Vinyl Floor Sweep – Sew-in or Velcro Option – Seals bottom 1 inch gap to seal off dust, dirt, & contaminants.
Part# CA 300 – Sew On Part# CA 299 – Velcro
Floor Mount D-Rings (Add-On)
Floor Mount D-Rings – Included with strap and buckle. Fastens the curtain system to floor against wind & updrafts
Part# CA 101
Adhesive Velcro (Add-On)
2 inch Adhesive Velcro – Attaches any curtain to a brick, metal, concrete, or wood wall or door openings.
Part# CA 677 – 2″ PSA Loop Part# CA 694 – 2″ PSA Hook
Valance Panels (Add-On)
Upper Stationary Curtain Panels – Custom made to Ceiling Design -Ideal when the top half of an area does not need to be opened and contaminants need to be sealed off.
Part# CA 655
Strip Curtain Walk Through (Add-On)
Equip your curtain with the flexibility to walk or drive through without opening your entire system. Can be equipped for man or Forklift Traffic
Part# CA 900
Magnet Attachments (Add-On)
2″ Magnets Attachments provide a quick and easy attaching and un-attaching of multiple curtains.
Part # CA 550 – Sew On<br>Part # CA 551 – Adhesive PSA
18 oz Coated Vinyl FR - Opaque
18 oz per sq/yd Coated Vinyl provides excellent Tear and Tensile Strength for your Wash Bay Curtains while also giving Superior Abrasion Resistance Compared to Laminate Vinyls. Meets Flame Resistant Standards, CFM, NFPA-701 & ASTM E-84.Generally used on the top & bottom panels but can also be selected as a complete opaque curtain. For More Information on Tech Specs, See 18 oz FR Coated Vinyl Technical Specifications Here.
Red
Yellow
Champion Blue
Royal Blue
Purple
Orange
Forest Green
Gray
Tan
Black
13.5 oz Laminate Vinyl FR - Opaque
13.5 oz per sq/yd Coated Vinyl provides the most economical Vinyl Curtain Material with solid durability. The Vinyl Meets Flame Resistant Standards, CFM, NFPA-701 & ASTM E-84. Generally used on the top & bottom panels but can also be selected as a complete opaque curtain. For More Information on Tech Specs, See 13 oz FR Laminate Vinyl Technical Specifications Here.
Red
Yellow
Blue
Forest Green
White
Gray
Black
THREADED ROD - SUSPENDED
Track System is mounted in from beams or trusses with a C-Clamp, and using a 3/8″ Threaded Rod to suspend down to the desired height. The Threaded Rod Track Mounts then slide over the threaded rod. Mount Spacing can be from 4′ -8′ with taller heavier systems over 25′ being 6′ or less usually
TH C600
TH C502
TH C503
TH C601
TH C604 Use w/ 500s
TH C900 - Sub for Threaded Rod, Beam to Chain, & Wall
BEAM TO CHAIN - SUSPENDED
Track System is mounted in from beams or trusses with a C-Clamp, and using an S-Hook suspended down with chain to the desired height. The Track Mounts then connect the system with more S-hooks. Aircraft Cable is another option to use instead of chain. Mount Spacing can be from 4′ -8′ with taller heavier systems over 25′ being 6′ or less usually
TH C500
TH C503
TH C503
TH C501
CEILING MOUNT
Ceiling Mount Hardware is attached with lag bolts directly flush to ceiling, floor joists or to steel beams.
TH C200
TH C200
TH C203
TH C201
WALL MOUNT
For the Wall Mount installation method, track mounts are attached to walls above openings, or you can use wall end brackets to brace or stabilize the track.
TH C303
TH C302
TH C301
TH C300
FLOOR MOUNT FREE STANDING
The Floor Mount System which is Free Standing, uses base plates at intervals anywhere from 4′ – 10′ depending on the height of the curtain system. The base plates attach to posts which connect to the floor mount splices.
TH C800
TH C802
TH C803
TH C801
6' - TH F06, 7' - TH F07
8' - TH F08, 9' - TH F09
10' - TH F10, 12' - TH F12
TH C804
STRAIGHT TRACK, ROLLER HOOKS, & ACCESSORIES
Straight Tracks, Plain Connectors, Universal Mounts, End Stops, as Well as Pulleys to Customize Your Track Curtain System.
TH R101
TH R100
TH C700
4' - TH T04
5' - TH T05
6' - TH T06
7' - TH T07
8' - TH T08
10' - TH T10
12' - TH T12
- Measure the Distance of the Width of the Curtain Laid Out
-
- Steel Guard Adds 3% + 2″ to the Width Of Curtains for Drapage (Unless Custom Spec’d)
- The Track Hardware is the Same Width as Your Order.
2. Measure the Distance from the Floor to the Mounting Point
-
- Paint Booth Curtains with Track come Standard 3″ Shorter to Account for the Track. (For Example a 10′ Height System Measures 9′-9″)
- If you have a Floor Sweep the Size is the 3″ Shorter and the Floor Sweep will Drape and Inch Below the Full Measure Height
- If you are needing to Enclose a Sloped Roof the Track Paint Booth Curtain will be the Height before the Egress. We will need to make Two Triangular Panels. We will need the “Right Side Height”, “Left Side Height, and the Width.
All the Track Parts Connect Modularly
- Layout the Track Pieces & Connectors Along the Floor Right Below Where you Plan to Mount Them.
- Affix One of the End Stops Along the End of the Track (Unless Track is In-between Walls)
- Connect the Track on the Back Side By Sliding the In-Line Connectors Over the Track and Match Up the Holes, Use an All Wrench with Set Screws to Affix
- . Take First Piece of Track and Second Piece of Track and Slide the Left Side of the Next In-Line Connector and One Peice and Right Side of the In-Line Connector.
- Continue this in Perpetuity Untill the Track System is to End.
For More Detailed Information Take a look at our Track Installation Instructions
Typically Track Spacing is Anywhere from 5′-8′ Apart.
Unless the System is very heavy and tall Spacing below 5′ will not be necessary. Most systems up to 8′ will have a “droop of less than 1/8”. This is called the Deflection. Contact one of our Reps if you are Needing Help Determining the Deflection.
