Silicone Quilted Molten Splash Curtains

Quilted Insulated Curtains That Shed Molten Splash and Hold a Temperature Differential Across the Opening

Molten splash curtains from Steel Guard Safety are a quilted three-part build: 32 oz Red Spark™ silicone coated fiberglass on both faces over a needlemat insulating core, stitched through on a grid. They do two things nothing else in our line does — shed molten metal rather than letting it burn through, and hold a real temperature differential across the curtain.

This is the insulated build. If the requirement is surviving sustained high temperature, our HT-3000 High Silica Cloth Curtains are the answer; if it is reflecting radiant heat, our HT-4000. For the full range, see High Temperature Curtains.

How Molten Splash Protection Actually Works

Molten metal protection is not a temperature rating problem. A splash arrives as a discrete mass of metal at 2500°F or more, and what matters is whether it sticks, whether it burns through, and whether it comes out the other side.

Silicone does something useful here that bare fabric does not. Molten metal beads on a silicone surface and rolls off rather than adhering and continuing to burn in one place. The splash sheds before it can concentrate enough heat to penetrate.

Behind that, the needlemat core provides the mass and thickness that stops anything that does get through the face. A thin single-layer curtain has nothing behind the point of contact. A quilted assembly has half an inch of fibrous insulation absorbing and spreading the energy.

That combination — a shedding face over an insulating core — is what makes a quilted build the right answer for splash rather than a higher temperature rating on a thin fabric.

Holding a Temperature Differential

The other job this build does is genuine thermal separation. Most industrial curtains are barriers: they stop radiant line of sight and slow air movement, but the curtain itself heats up and the far side warms with it.

A quilted insulated curtain behaves differently. The core creates real thermal resistance, so the cool side stays meaningfully cooler than the hot side rather than simply lagging behind it. That matters wherever you are holding two temperature zones apart in the same building — a conditioned area beside a hot process, a cooling zone next to a heat treat line, a work area that needs to stay comfortable while the process next to it does not.

Where Quilted Insulated Curtains Are Installed

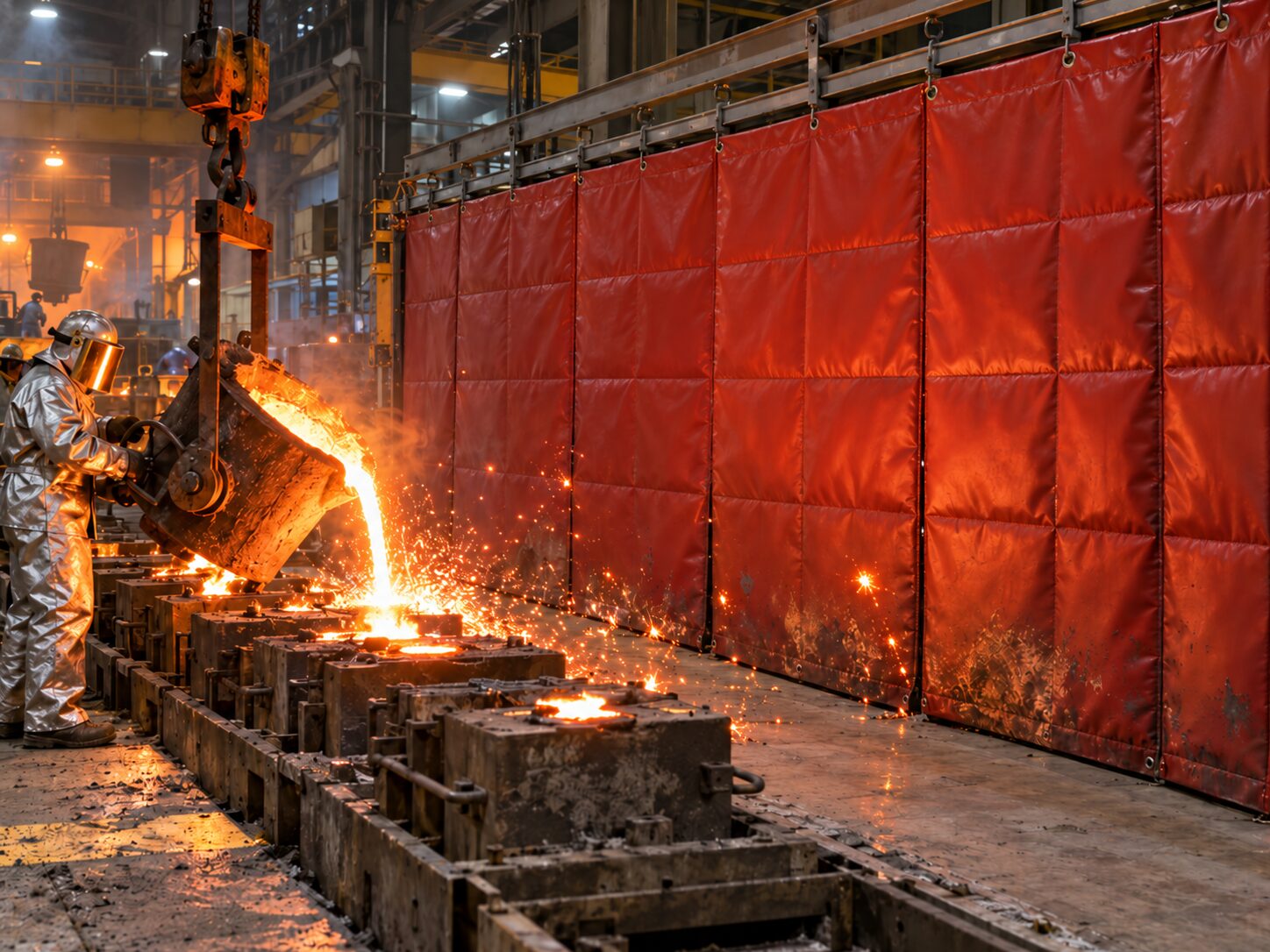

Foundry pour lines and ladle stations. The application this build exists for. Molten splash exposure with personnel and equipment in range.

Shakeout and casting transitions. Hot castings, sand, and splash in the same space.

Temperature zone separation. Holding a conditioned or cooling area apart from a hot process without permanent wall construction.

Heat treat cure-down areas. Where controlling the rate of temperature loss is part of the process rather than an efficiency question.

Equipment and control protection. Shielding cabinets, controls and cabling from both splash and sustained thermal exposure.

Operator enclosures near hot work. Where the requirement is a comfortable pocket inside a hot building.

Which Build Do You Need?

The Silicone Face Sets the Temperature Limit

The silicone coating is rated 500°F continuous on a 1000°F E-glass base fabric. That is the number this curtain carries, and it is lower than our silica builds by a wide margin.

That is not a shortcoming — it reflects what the product is for. Molten splash protection and thermal separation are not the same problem as sustained high-temperature survival. A ladle station may sit in an area whose ambient temperature is nowhere near 500°F while splash exposure is the real hazard. A temperature zone divider works entirely below its rating by design.

If your opening runs continuously above 500°F, this is the wrong build regardless of splash exposure — tell us and we will spec silica plies instead.

Construction

• Both faces: 32 oz Red Spark™ silicone coated fiberglass, .035″ thick, high-visibility red
• Core: TempMat™ fiberglass needlemat insulation
• Quilt-stitched through on a grid so the core stays distributed rather than settling to the bottom of the panel
• Stainless steel thread throughout. Fiberglass thread caps at 1000°F and PTFE thread at 600°F
• Grommets every 12 inches across the top with reinforcement, with optional chain bottom
• Tracks or hangs fixed. No foil laminate, so no static-only restriction
• Heavier than a single-layer curtain. Hanging hardware should be sized for the finished weight — tell us the opening and we will give you the figure
• Built to any opening, heights from 8 to 25 feet standard and larger available

Quilted for Long-Term Insulation Performance

Each HT-5000 curtain is built as a sealed insulated envelope: 32 oz silicone coated fiberglass on both faces with a fiberglass needlemat insulation core. Panels are channel-stitched in 24″ sections with Lewco stainless steel thread, then secured at the center of every section with stainless steel quilting pins and locking washers.

This construction keeps the core locked in place when the curtain hangs vertically, preventing the insulation from settling toward the hem over time. Wide quilt spacing also means fewer compressed stitch lines through the insulation — so more of the curtain’s surface area maintains its full insulating thickness.

Core Thickness

Core thickness is specified per application. A thicker core gives more thermal resistance and more mass behind a splash; a thinner one keeps the curtain lighter and more flexible on a track. Tell us whether the driver is splash protection, thermal separation, or both, and how the curtain will be mounted.
