- Client
- Black Eagle Transportation, prime contractor on a federal kennel contract at a U.S. military installation
- Scope
- 28 kennel buildings of custom outdoor curtain panels, cut from field measurements
- Challenge
- Every opening different, no practical way to measure them ourselves, and an outdoor environment that punishes any curtain not secured at the bottom
A military working dog costs six figures to train and takes years to replace. It also lives outdoors, in a run, through whatever the winter does.

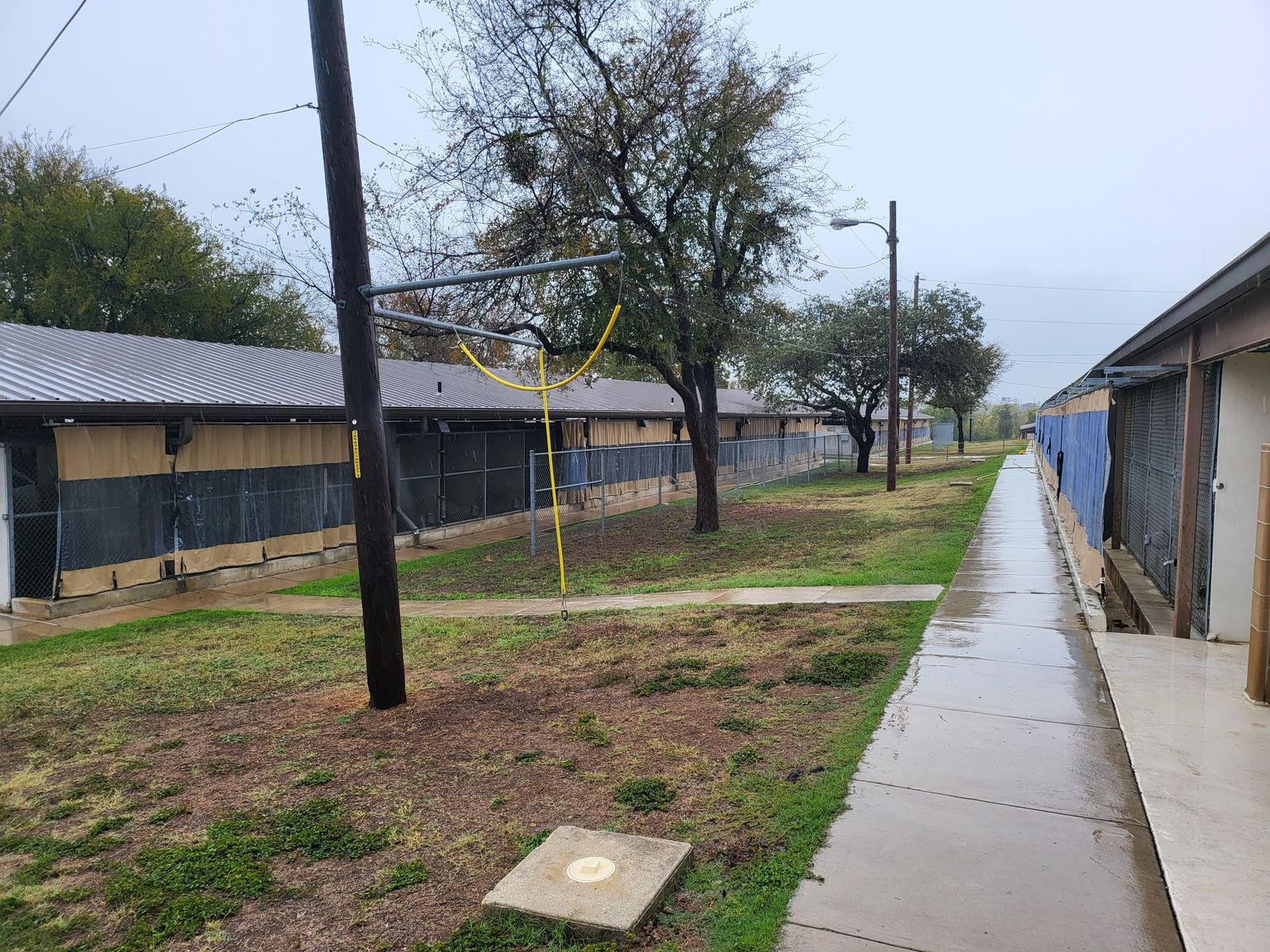

Steel Guard Safety was brought in as a subcontractor to supply custom curtains for 28 kennel buildings at a U.S. military installation — the enclosure standing between those animals and cold, wind, and driving rain. The prime contractor was Black Eagle Transportation.
The specification was not complicated. Delivering it was, for reasons that had nothing to do with the curtains themselves.
Twenty-eight buildings we could not measure ourselves
We made one consultation visit at the front of the job. After that, every dimension we cut vinyl from was taken by someone else’s hands, a thousand miles away.
That is not a complaint about access — it is arithmetic. Twenty-eight kennel buildings, each with multiple runs inside, each opening slightly different, on a working installation. No supplier is flying a crew down to measure all of them, and no schedule survives waiting for one.
Twenty-eight buildings of custom panels, cut wrong, is not a fixable mistake. It is a rebuild.
So before anything was fabricated, we built the measuring instrument instead of the curtain.
We designed custom field measurement forms specific to this facility — separate versions for four, five, and six curtains along a long run, a version for a single solid panel on a short side, and revised versions adding the bottom cutouts the kennel layout required. Each form told the person in the field exactly which dimension to take and where to record it.
We paired the forms with a fixed convention for walking a building: start at the bottom-left corner, move clockwise, label A, B, C, side one, side two. Every building was measured under the same rules, so a panel numbered on our floor in South Holland could only fit one opening in Texas. Two of the buildings carried no identification at all, which is exactly the situation a naming convention exists to survive.
The prime’s field team filled out the forms. We cut from them. Each building’s completed set shipped as its own pallet.
Outdoor vinyl is a different product
Most industrial curtain work happens indoors. This did not, and outdoor conditions change the engineering in ways that are easy to underestimate.
Vinyl moves with temperature
Outdoor vinyl curtains shrink in cold weather and expand again when it warms. How much depends on panel size and how cold it gets. A panel cut to fit perfectly in August can pull tight in January — precisely the month the dogs need it closed.
Wind attacks from underneath
An industrial curtain hanging free at the bottom is a sail. In an outdoor kennel it is worse than useless: it lifts, it flaps, and it admits weather at exactly the height the animal is lying down. We do not warranty outdoor industrial curtains unless the panels are secured along the bottom. That is not a legal hedge — it is the difference between a curtain that works and one that tears itself off the track in a season.
The animals are part of the load case
Dogs lean into these panels, paw at them, and chew the edges. Hardware that would be adequate on a loading dock is not adequate here.
The securement design evolved across the project as the field told us what held. Early panels on the first building were built with grommets along the sides. That gave way to floor-mounted D-rings — 990 in one 17-building phase alone, and more than 2,100 across the project. Later phases moved to a clip-and-strap system, 1,452 sets, with double chain where the spans demanded it.
Track was stainless steel throughout. Galvanized would have been cheaper and would have been a warranty claim.
The specification moved twice
Two change orders ran through this project, and neither came from a fabrication error.
The first came from the statement of work itself. Read against the drawings, the requirements contradicted each other — panels specified one way in the written scope and another in the layout. We documented the contradictions in writing and priced the resolution, rather than building to a spec we knew was wrong and arguing about it afterward.
The second came after fabrication was partly complete, when a design preference higher up the chain of command went a different direction than the approved drawings. That is an ordinary fact of federal work. We requoted, reworked the affected panels, and held the schedule.
Neither change order delayed the outcome that mattered: the kennels were covered before winter.
Specifications
| Scope | Custom curtain panels for 28 outdoor kennel buildings |
|---|---|
| Environment | Outdoor, chain-link kennel runs |
| Panels | Clear vinyl with reinforced tan vinyl borders |
| Track | Stainless steel |
| Securement | Floor-mounted D-rings, 2,100+ project total; clip-and-strap sets, 1,452; double chain on selected spans |
| Shipping | One pallet per kennel building |
| Field measurement | Custom forms per run configuration, fixed clockwise labeling convention |
| Contract | Bonded federal subcontract — payment and performance bonds carried |
| Manufacturing | Fabricated in-house, South Holland, Illinois |
Results
- 28 kennel buildings enclosed before the winter season
- Every panel fabricated to field measurements taken by the prime’s crew on forms we designed, after a single consultation visit
- Two scope changes absorbed — one from statement-of-work contradictions we identified and documented, one from a mid-project design change
- Securement system upgraded during the project to meet outdoor wind and animal-contact conditions
- Payment and performance bonds carried for the duration of the contract
The work has kept coming
That project closed out in 2022. The facility type did not go away, and neither did we.
Since then we have been invited to bid renovation work on twelve more kennel buildings at the same installation, a further fourteen in a later phase, and a military working dog facility at a second base — through a different prime contractor than the one we started with. The later scopes have added acoustical panels and tightened the hardware specification to 316 stainless steel, both of which we manufacture and quote in-house.
Being asked back by a prime who has never worked with you before, on a facility type with this much specification attached to it, is the part we would point to. Somebody checked.
Why it matters
Curtain specifications usually describe a building. This one described an animal.
Everything that made the job difficult — the securement engineering, the stainless track, the refusal to warranty an unsecured outdoor panel, the measurement forms built before the first cut — comes back to the fact that something was going to be living behind these curtains through the winter, with no say in whether they held.
Steel Guard Safety fabricates in South Holland, Illinois, is an SBA-certified HUBZone manufacturer, and carries bonded federal subcontracts. If you are a prime looking for a fabrication sub who can work from field measurements and hold a schedule through a scope change, we would like to hear about the project.
